BMW F, K & S HEX ezCAN Accessory Manager (Gen 2)

BMW F, K & S HEX ezCAN Accessory Manager (Gen 2)

SKU:

*Only for F / K / S Series BMW Motorcycles*

This accessory manager for BMW's GS liquid cooled series & K1600 lets you add and configure accessories with ease and without cutting any wires. It's simple and easy to fit additional lights, an air horn, accessories and emergency brake lights that make the bike safer to ride.

Key Features

• Waterproof and dustproof
• One switch manages everything
• Integrates additional safety features
• Does not void warranty
• Plugs directly into CAN-Bus (saves time)
• Unobtrusive - Fits perfectly under the seat
• Easy configuration of software via USB (Mac and Windows PC)
• Four individually fused channels

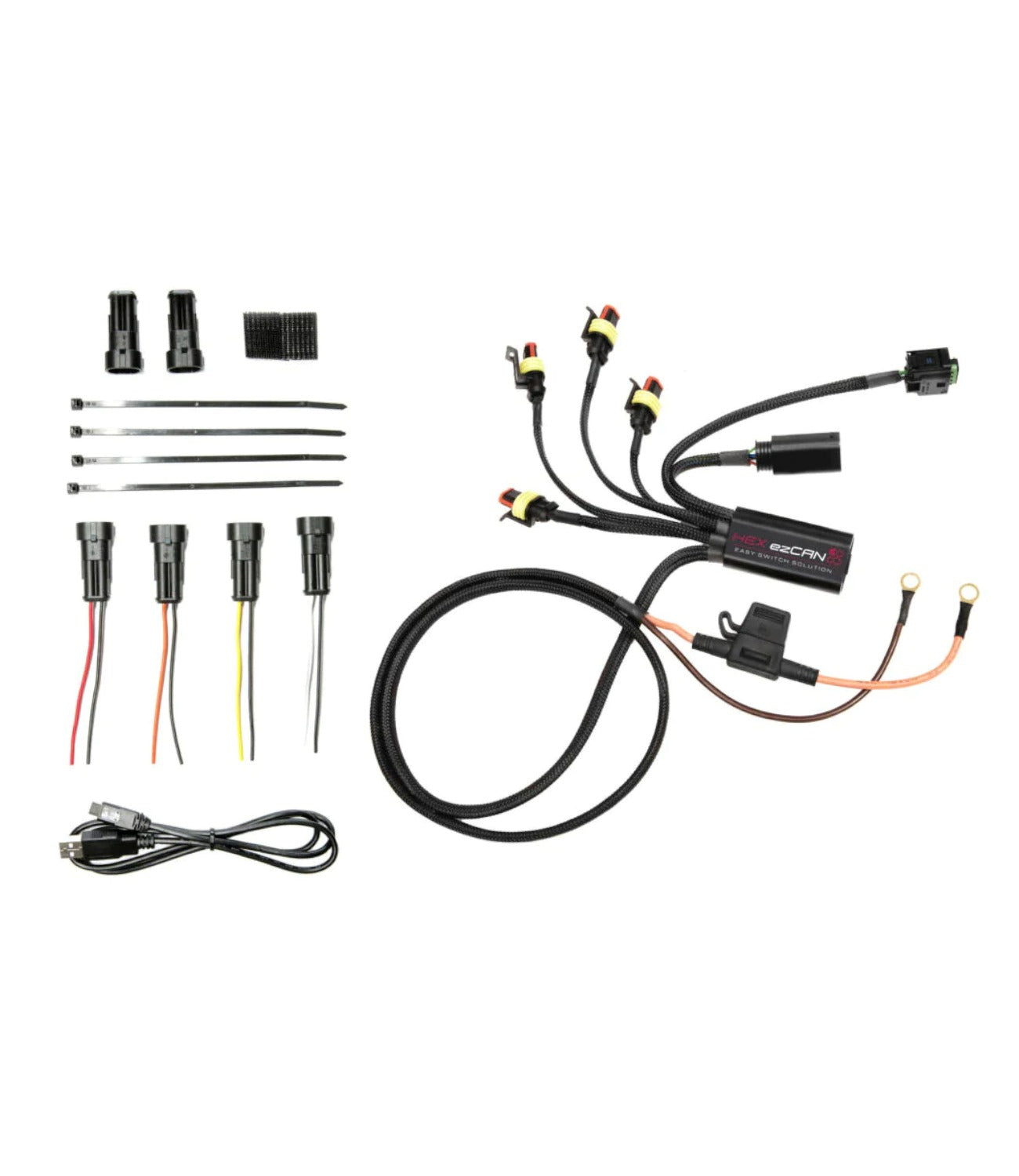

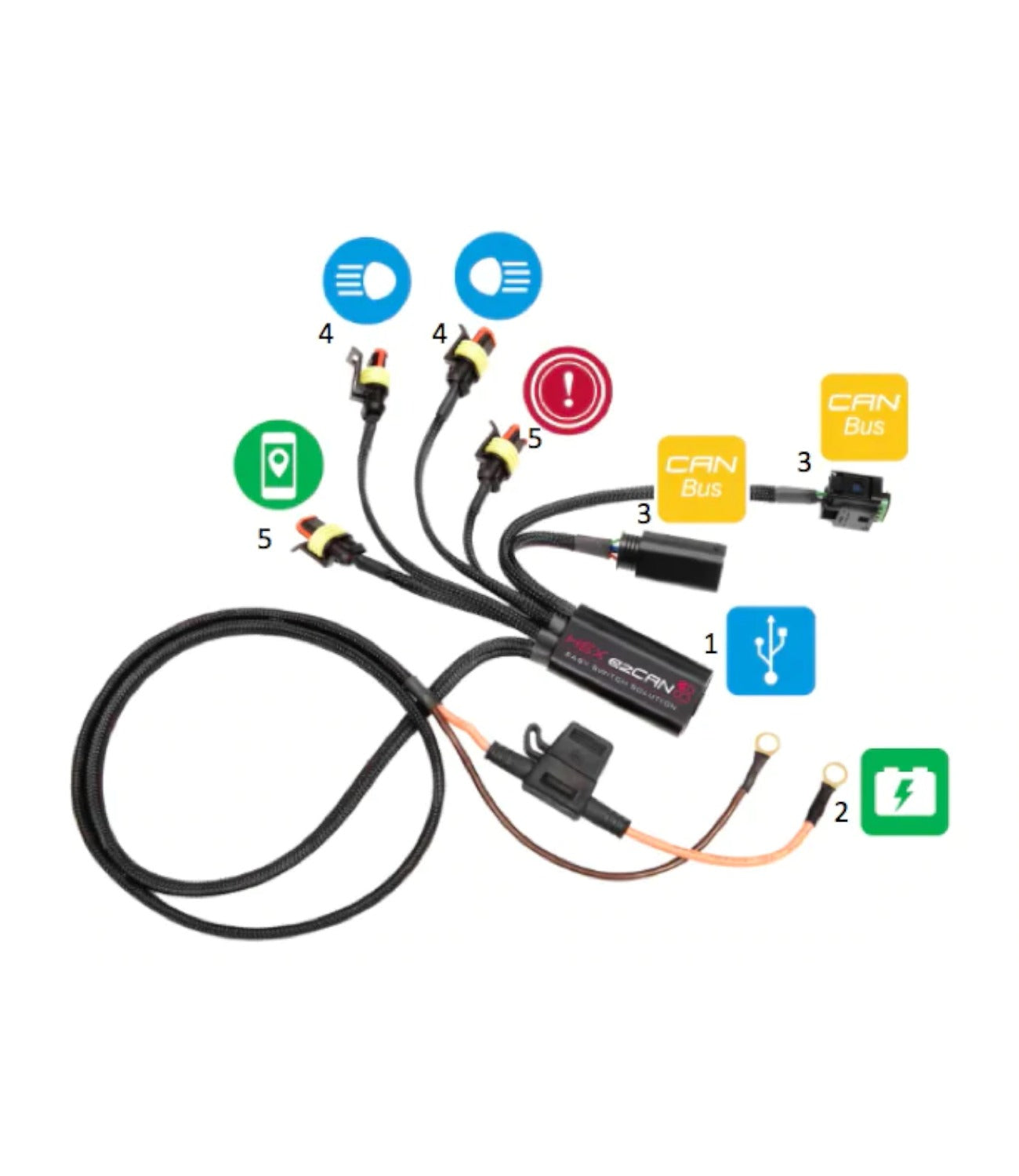

Specifications and Components

1. Waterproof Micro USB connector
2. Battery connection and fuse
3. Two CAN-Bus connectors
4. Two high-power outputs (10A continuous / 25A, max 20 seconds)
5. Two low-power outputs (4A continuous)

Product Size: 55 x 30 x 16mm (2,2 x 1,2 x 0,6")

Easy Installation

1. Download and install the HEX ezCAN software
2. Install the ezCAN under the seat (Velcro included)
3. Route and connect the ezCAN battery cables
4. Plug the ezCAN into the motorcycle CAN-Bus
5. Plug accessories into the ezCAN
6. Use the software to configure the ezCAN via USB (Mac or Windows PC)

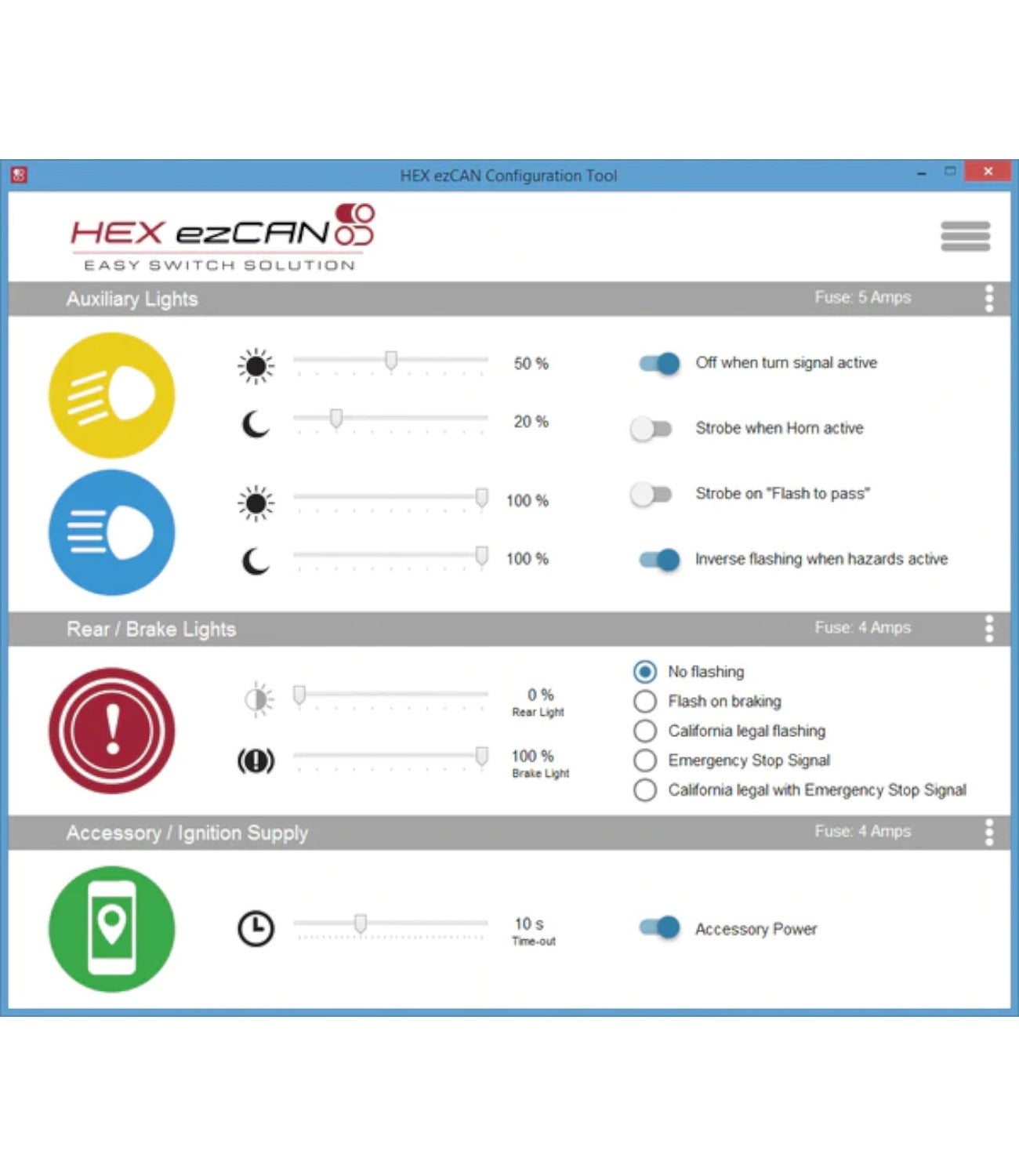

Software

The HEX ezCAN software is available for both Mac and Windows PC and is used via a micro USB cable, which is included in the package. Use Channel Mapping to select your preferred configuration. The Configuration window then lets you customise the behaviour of your accessories according to CAN-Bus inputs, for example setting up an emergency brake light to flash when the ezCAN detects harsh deceleration or the LEDs to flash when the air horn is activated. Accessory/Ignition supply can be set to remain on for a specific time after the ignition is turned off.

Compatible With:

BMW F750GS (2017 onwards)
BMW F850 GSA (2019 onwards)
BMW F850GS (2018 onwards)
BMW F900 XR (2020 onwards)
BMW K 1600 GT
BMW K1600 B (2009 onwards)
BMW K1600 Grand America
BMW K1600 GT / GTL
BMW R1200 GS LC (2017-2019)
BMW S1000 R (2018-2020)
BMW S1000 RR (2016-2018)
BMW S1000 XR (18-19)
BMW S1000RR (2019 onwards)
