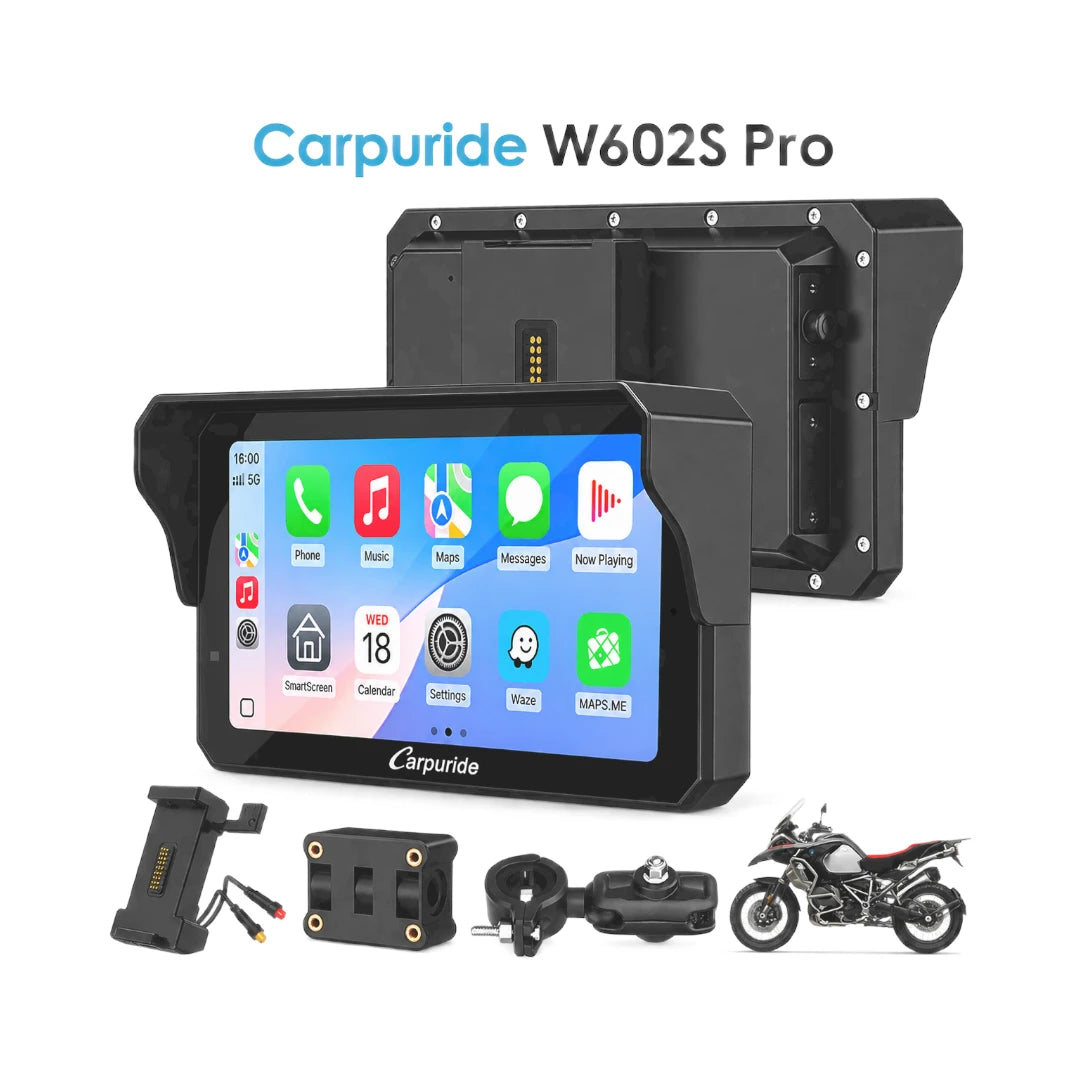

CARPURIDE W602S Pro 6.25" Universal Motorcycle CarPlay

• Manufacturer: CARPURIDE
• Brand: CARPURIDE
• Model: W602S Pro
• Display: 6.25" HD IPS
• Brightness: 1000 Nits
• CarPlay: Wireless
• Android Auto: Wireless
• Bluetooth: Dual Bluetooth 5.0
• Bracket: BM05 Universal
• Handlebar Fitment: 12–28mm
• TPMS: Supported
• Intercom: 2-Rider
• Waterproof: IP67
• Storage: Up to 256GB
• Power: 12V DC / USB-C
• Operating Temperature: -20°C to 60°C

• 6.25-Inch HD IPS Display: Features a capacitive touchscreen with 1000-nit brightness and sunlight-readable visibility, providing a clear viewing experience during daytime and outdoor riding.
• Wireless Apple CarPlay & Android Auto: Connect compatible iOS and Android smartphones wirelessly to access navigation, music, phone calls, voice assistants, supported applications, and navigation audio.
• Universal BM05 Mounting System: Includes a BM05 universal bracket compatible with 12–28mm handlebars, featuring 360° rotation, adjustable viewing angles, and a quick-release design.
• Wired Handlebar Controller: Includes a convenient handlebar-mounted wired controller for operating supported functions while riding. A single click can switch screens, while a long press provides supported call functions.
• Dual Bluetooth 5.0: Supports compatible Bluetooth helmets and communication devices for music, navigation audio, phone calls, and other supported functions.
• Two-Rider Intercom: Supports communication between two riders through compatible Bluetooth communication equipment, with a range of up to 10 metres under suitable conditions.
• TPMS Display Support: Supports tyre pressure monitoring information when compatible TPMS equipment is connected, allowing tyre-related information to be viewed directly on the display.
• Multi-Function Type-C Port: Supports USB power, phone charging, battery reverse charging, and compass calibration through the Type-C connection.
• Multiple Power Options: Supports 12V DC direct motorcycle battery connection or 5V/3A minimum USB-C power, providing flexibility for different installation requirements.
• SOS Emergency Function: Includes an SOS emergency call function designed to provide an additional safety feature for riders during emergency situations.
• Built-In Compass & Barometer: Provides directional and atmospheric pressure information useful for navigation, touring, and outdoor riding.
• Automatic Light Sensor: Automatically adjusts screen brightness according to surrounding lighting conditions for improved visibility.
• IP67 Waterproof Protection: Designed to resist dust and water exposure and withstand immersion up to 1 metre for up to 30 minutes under specified testing conditions.
• Large Storage Support: Supports TF/SD cards up to 256GB for compatible storage requirements. Memory card is not included.
• Wide Operating Temperature: Designed to operate between -20°C and 60°C (-4°F and 140°F).
• OTA & TF Card Updates: Supports free online OTA software updates as well as firmware updates through a TF card.
• Anti-Theft Design: Incorporates an anti-theft design for additional security when the motorcycle is parked.

Apple CarPlay & Android Auto

Wireless Apple CarPlay and Android Auto allow compatible smartphones to connect to the W602S Pro without requiring a wired smartphone connection.

Supported functions include:

• Navigation
• Music
• Phone calls
• Voice assistants
• Supported smartphone applications
• Navigation audio

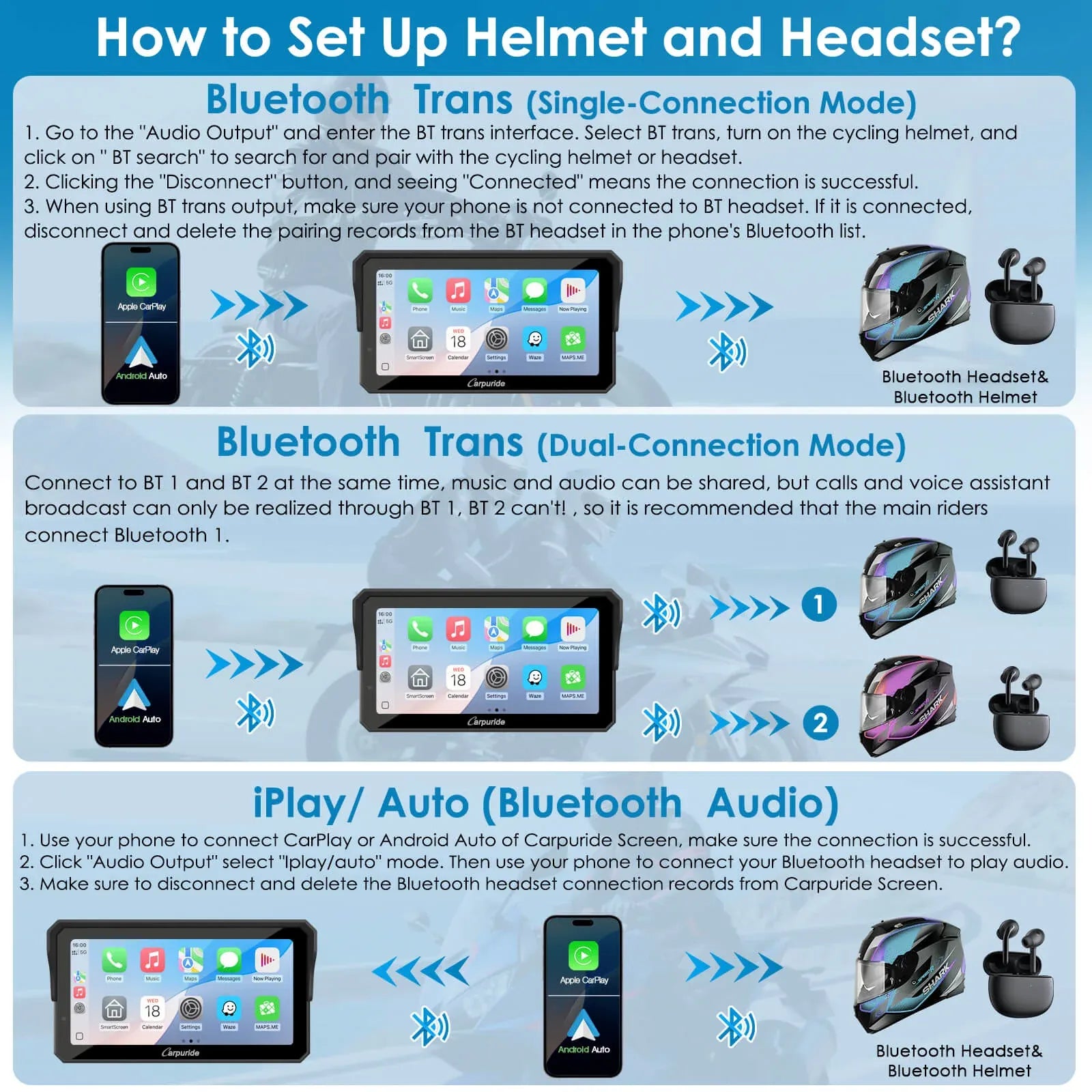

Bluetooth & Intercom

The dual Bluetooth 5.0 system supports compatible Bluetooth helmets and communication equipment for music, calls, navigation audio, and communication.

The two-rider intercom function supports communication over a range of up to 10 metres under suitable conditions.

TPMS

The W602S Pro supports TPMS display functionality when compatible TPMS equipment is connected. Tyre-related information can then be viewed directly through the motorcycle display.

BM05 Universal Bracket

The BM05 bracket is designed for universal motorcycle installation.

• Compatible with 12–28mm handlebars
• 360° rotation
• Quick-release design
• Adjustable viewing angle
• Suitable for different handlebar positions

Type-C & Power

The Type-C connection provides additional functionality including USB power, phone charging, battery reverse charging, and compass calibration.

The system supports:

• 12V DC: Direct motorcycle battery connection
• USB-C: 5V, minimum 3A

Storage & Updates

The W602S Pro supports TF/SD cards up to 256GB. The memory card is not included.

The system supports free online OTA updates and firmware updates through a TF card.

Waterproof Protection

The W602S Pro features an IP67 waterproof rating, providing protection against dust and water exposure.

High-pressure water jets and power washing should be avoided, as excessive water pressure can force water past the waterproof seals.

The warranty covers manufacturing defects in materials and workmanship.

Warranty Exclusions

• High-pressure water or power-wash damage
• Drops
• Crashes or accidents
• Physical impacts
• Misuse
• Product modifications
• Improper installation
