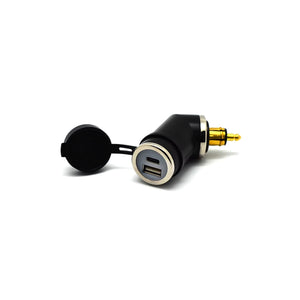

Angled motorcycle DIN Hella USB-C and USB-A fast charger with protective cap

Motorcycle USB charger features list including Quick Charge 3.0, USB-C PD, and safety certifications.

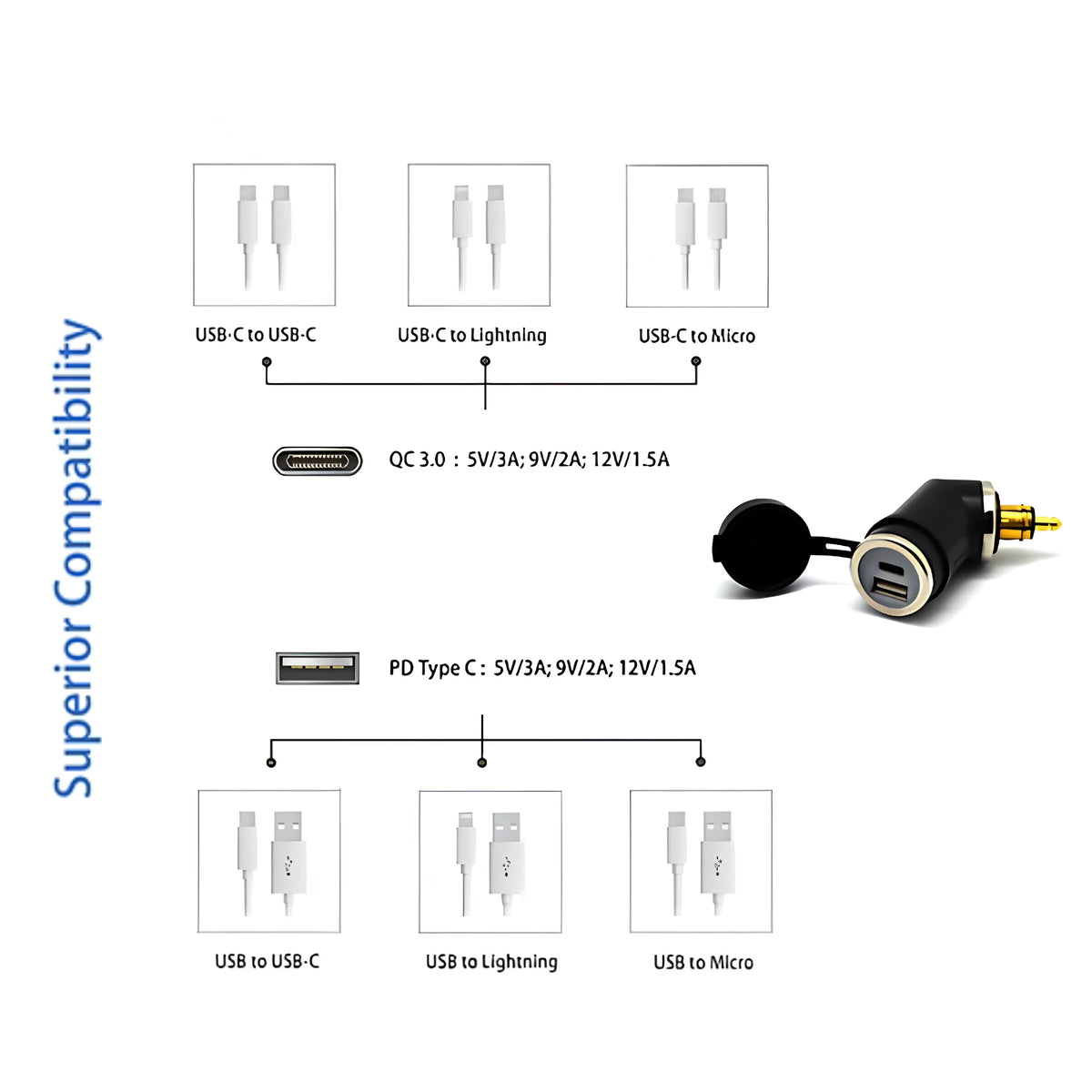

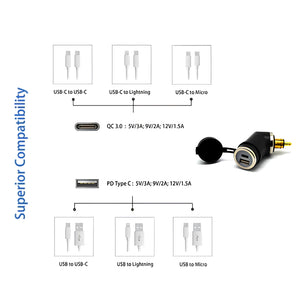

Angled motorcycle DIN Hella USB-C and USB-A charger showing cable compatibility chart

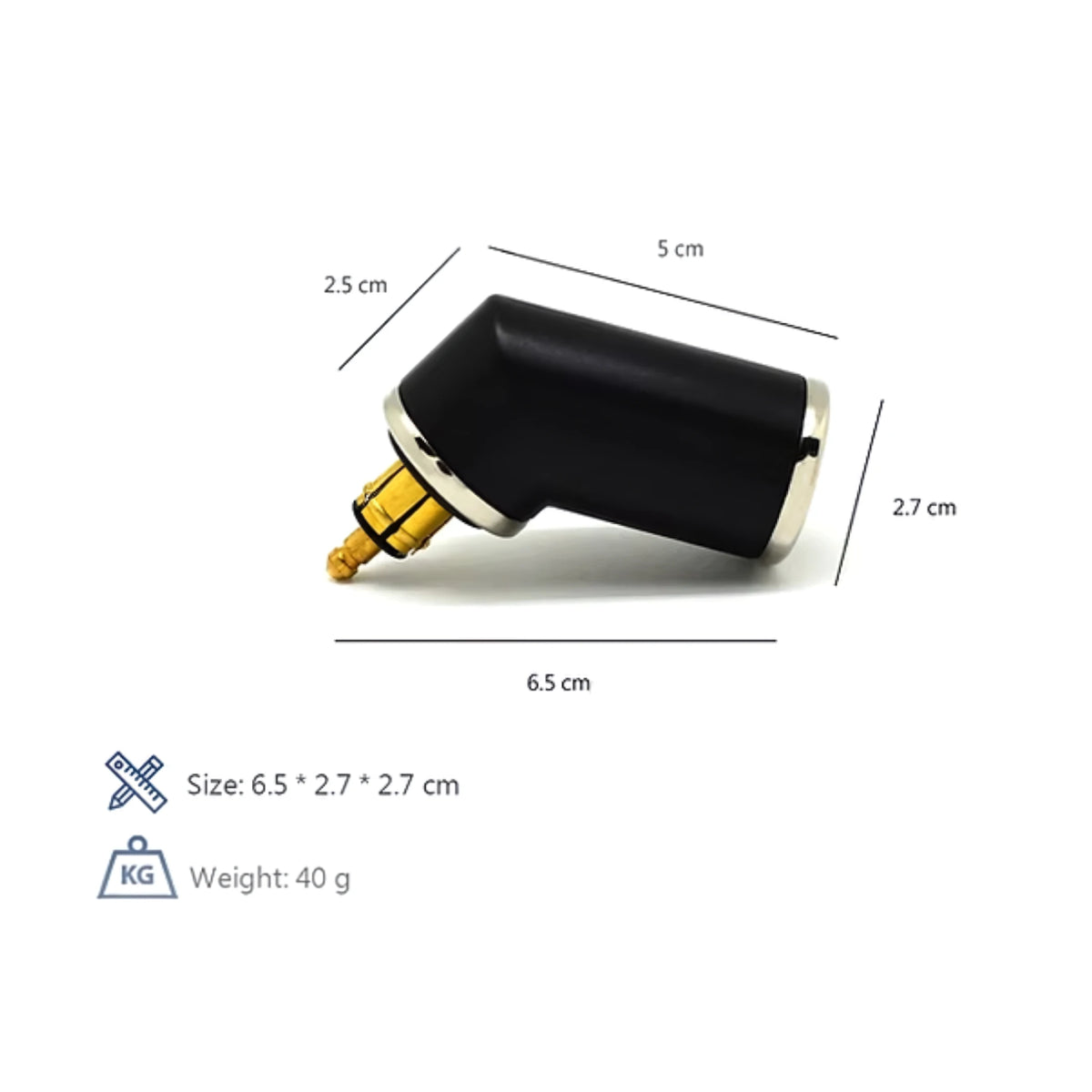

Angled DIN Hella motorcycle USB charger with dimensions and weight specifications shown.

Cliff Top 36W DIN Hella USB-C PD & QC 3.0 Angled Charger

Name: Cliff Top 36W DIN Hella USB-C PD & QC 3.0 Angled Charger
Brand: Clifftop
SKU: TY-A2006
Availability: InStock

Rs. 0.00

Quantity

Order in the next to get it between and

150+ Authorized Brands
4.7 Rider Rating
100% Authentic
250+ Cities Served
2 Stores
24hrs Express Delivery

150+ Authorized Brands
4.7 Rider Rating
100% Authentic
250+ Cities Served
2 Stores
24hrs Express Delivery

Vendor: Clifftop

SKU: TY-A2006

Description

Dual-Port Fast Charging for Motorcycles with DIN Hella Power Sockets

Keep your mobile devices charged while riding with the Cliff Top 36W DIN Hella USB-C PD and QC 3.0 Angled Motorcycle Charger. Designed for motorcycles equipped with a Hella/DIN power socket, this compact short-angled adapter provides two USB charging ports for powering compatible devices.

The charger features an 18W USB-C Power Delivery port and an 18W USB-A Quick Charge 3.0 port, delivering a combined maximum output of 36W. Its 12–24V input supports compatible motorcycle electrical systems, while the angled design helps accommodate installation spaces around the handlebars and dashboard.

Motorcycle Compatibility

The charger is designed for motorcycles equipped with a compatible Hella/DIN power socket. Applicable motorcycles from BMW, Ducati and Triumph are among the stated applications.

Compatibility depends on the actual power socket fitted to your motorcycle. Check your motorcycle's connector type and electrical specifications before ordering. Not every motorcycle from these brands has a DIN/Hella socket.

Device Compatibility

USB-C PD: Compatible with smartphones, tablets and other devices supporting USB-C Power Delivery.
USB-A QC 3.0: Compatible with smartphones and devices supporting Qualcomm Quick Charge 3.0.
Simultaneous Charging: Supports connecting two compatible devices at the same time, subject to their charging requirements.

Specifications

Brand: Cliff Top
Product Name: DIN (Hella) to 36W PD USB-C + QC 3.0 (Angled)
Product Type: Motorcycle USB Charger Adapter
Connector Type: DIN (Hella)
Design: Short Angled
Input Voltage: 12–24V DC
Total Maximum Output: 36W / 6A max (as specified)
USB-C Output: 18W Power Delivery (PD)
USB-A Output: 18W Quick Charge 3.0 (QC 3.0)
Number of Charging Ports: 2
Charging Protection: Over-current, overheat and overcharge protection
Capacitor Type: Solid-State Capacitors
Certifications: RoHS, CE, FCC and USB-IF, as listed by manufacturer
Weight: 0.4 kg (listed product specification; confirm whether this is packaged or net weight)
Country of Origin: Taiwan
Package Quantity: 1 Unit

What's Included

1 × Cliff Top DIN (Hella) to 36W USB-C PD + QC 3.0 Angled Motorcycle Charger

Features

Dual-Port Fast Charging: Features two USB charging ports, allowing you to charge compatible devices simultaneously through USB-C PD and USB-A QC 3.0.
18W USB-C Power Delivery: The USB-C port supports up to 18W Power Delivery output for compatible smartphones, tablets and other USB-C devices.
18W USB-A Quick Charge 3.0: The USB-A port supports Qualcomm Quick Charge 3.0 for compatible Android smartphones and other supported devices.
36W Combined Maximum Output: Provides a combined maximum output of 36W, with up to 18W available from each port.
Independent Charging ICs: Features an independent integrated circuit for each port to manage charging when two devices are connected simultaneously.
Short-Angled Design: Its compact angled construction is designed for motorcycle installations where space around the handlebar or dashboard is limited.
DIN (Hella) Socket Compatibility: Connects directly to compatible motorcycle Hella/DIN power sockets, including applicable BMW, Ducati and Triumph motorcycles.
12–24V Input: Supports a 12–24V input range for use with compatible vehicle electrical systems.
Integrated Charging Protection: The built-in smart IC protection system is designed to protect against over-current, overheating and overcharging.
Solid-State Capacitors: Uses solid-state capacitors as part of its heat-resistant charging design.
Multiple Safety Certifications: The manufacturer lists RoHS, CE, FCC and USB-IF certifications for the product.

Warranty

1-year warranty from the invoice date. Water ingress is excluded from warranty coverage.

Warranty claims are subject to the applicable manufacturer's or authorised distributor's terms and conditions. Confirm warranty eligibility with your supplier before purchase.

Shipping & Return

Shipping & Delivery – Quick Summary

Shipping Coverage: We currently ship across India only.
Order Processing: Orders are usually processed within 2 business days, subject to product availability.
Delivery Partners: We work with trusted courier services like Delhivery, BlueDart, India Post, and others.
Delivery Timeline: Estimated delivery time is shown at checkout and may vary based on location and courier performance.
Shipping Charges: Calculated at checkout based on order weight, shipping method, and destination.
Order Tracking: Tracking details are shared via email once your order is shipped.
Delivery Support: For delays or delivery issues, contact 📞 +91 - 8867344145 support@motodrift.co.in.
Policy Updates: Shipping policies may be updated periodically without prior notice.

By placing an order, you agree to Motodrift’s Shipping & Delivery Policy.

Cliff Top 36W DIN Hella USB-C PD & QC 3.0 Angled Charger

Frequently Asked Questions

What type of power socket does the Cliff Top TY-A2006 charger use?

It uses a DIN (Hella) motorcycle power socket. Check your motorcycle's connector before ordering.

How many charging ports does this motorcycle charger have?

It has two ports: one 18W USB-C Power Delivery port and one 18W USB-A Quick Charge 3.0 port.

Can I charge two devices simultaneously?

Yes. The charger supports simultaneous charging through both ports, with a combined maximum output of 36W.

Is the Cliff Top TY-A2006 compatible with BMW, Ducati and Triumph motorcycles?

It is designed for compatible BMW, Ducati and Triumph motorcycles equipped with a Hella/DIN power socket. Check the connector fitted to your specific motorcycle.

What warranty is available for the Cliff Top TY-A2006 charger?

An Indian retailer listing for this product code specifies a 1-year warranty from the invoice date, excluding water ingress. Confirm coverage with your supplier before ordering.
