DENALI CANsmart GEN II Controller for Triumph Tiger 900/1200

Rs. 34,100.00

150+ Authorized Brands
4.7 Rider Rating
100% Authentic
250+ Cities Served
2 Stores
24hrs Express Delivery

150+ Authorized Brands
4.7 Rider Rating
100% Authentic
250+ Cities Served
2 Stores
24hrs Express Delivery

Vendor: Denali

SKU: DNL.WHS.24600

Description

Smart Plug-and-Play Accessory Control for Triumph Tiger Motorcycles

Take greater control of your motorcycle accessories with the DENALI CANsmart Controller GEN II for Triumph Tiger 1200 and 900 Series motorcycles. Designed to work with your motorcycle's CANbus electrical system, this controller simplifies the installation and management of compatible accessories through a plug-and-play connection.

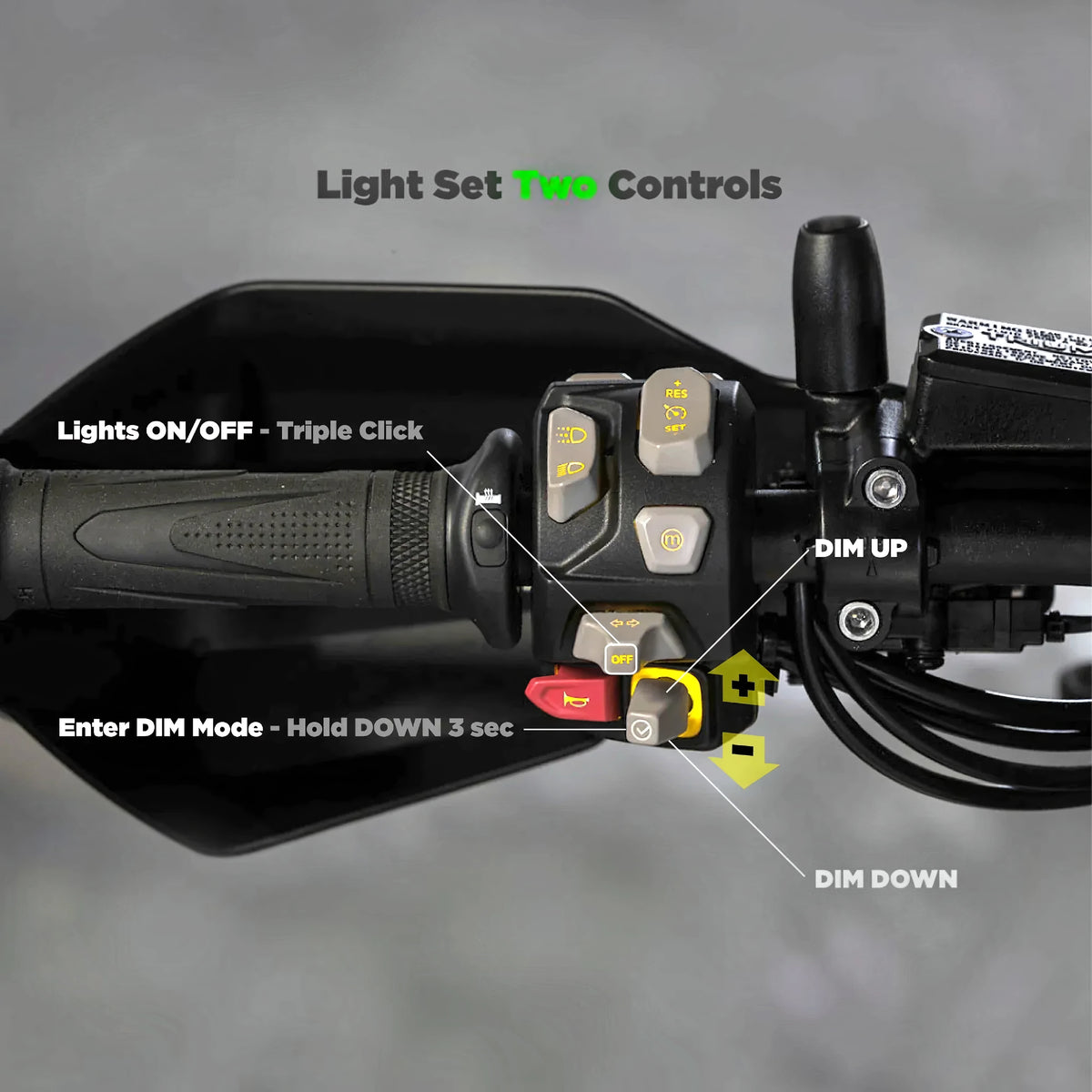

The CANsmart controller provides four independently configurable circuits for controlling auxiliary lights, horns, brake lights and other compatible electrical accessories. Customise lighting and accessory functions using the CANsmart Accessory Manager Software or supported motorcycle hand controls, depending on the selected function.

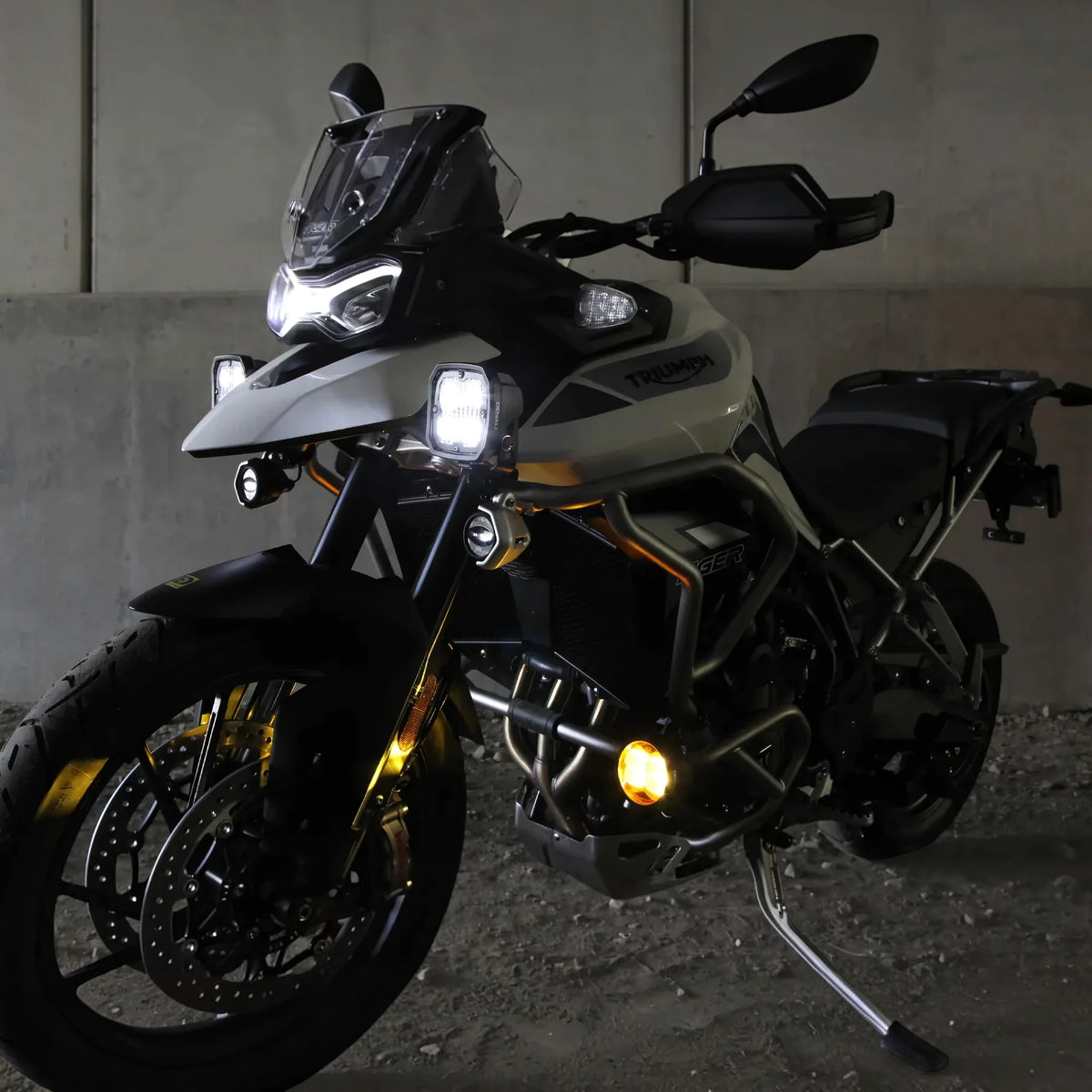

Auxiliary Lighting Control

Configure auxiliary lighting to switch between high and low settings with the factory high-beam switch. Supported functions include independent on/off control, dimming, light modulation, flash-to-pass and cancellation of the corresponding auxiliary light when a turn signal is activated.

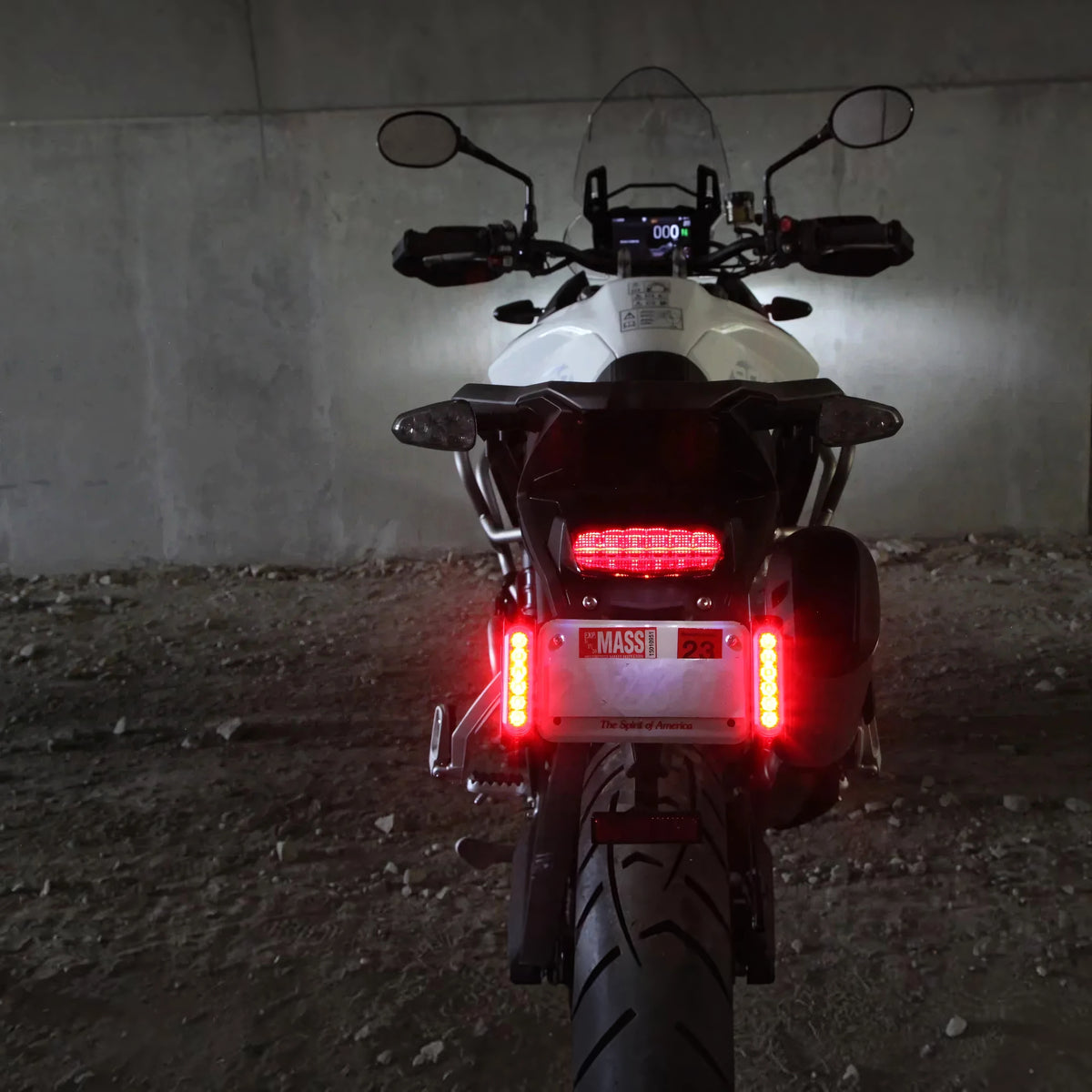

Brake Light and Safety Functions

The controller supports auxiliary brake-light functions such as deceleration-activated Smart Brake technology and selectable brake-light flash patterns. Available functions depend on the connected accessory, circuit configuration and motorcycle compatibility.

Horn and Accessory Integration

Connect supported aftermarket horns and configure auxiliary lights to strobe when the horn is activated. The accessory circuit can also supply switched 12V power to compatible devices such as a GPS unit, phone charger or heated riding gear.

Vehicle Compatibility

The supplied fitment information lists the following Triumph motorcycles:

Triumph Tiger 1200 GT (2022–2023)
Triumph Tiger 1200 GT PRO (2022–2023)
Triumph Tiger 1200 GT Explorer (2022–2023)
Triumph Tiger 900 GT (2020–2023)
Triumph Tiger 900 GT Low (2020–2023)
Triumph Tiger 900 GT PRO (2020–2023)
Triumph Tiger 900 Rally (2020–2023)
Triumph Tiger 900 Rally PRO (2020–2023)

Confirm the exact model year and variant before ordering. Compatibility may depend on the motorcycle's wiring configuration and the accessory being installed.

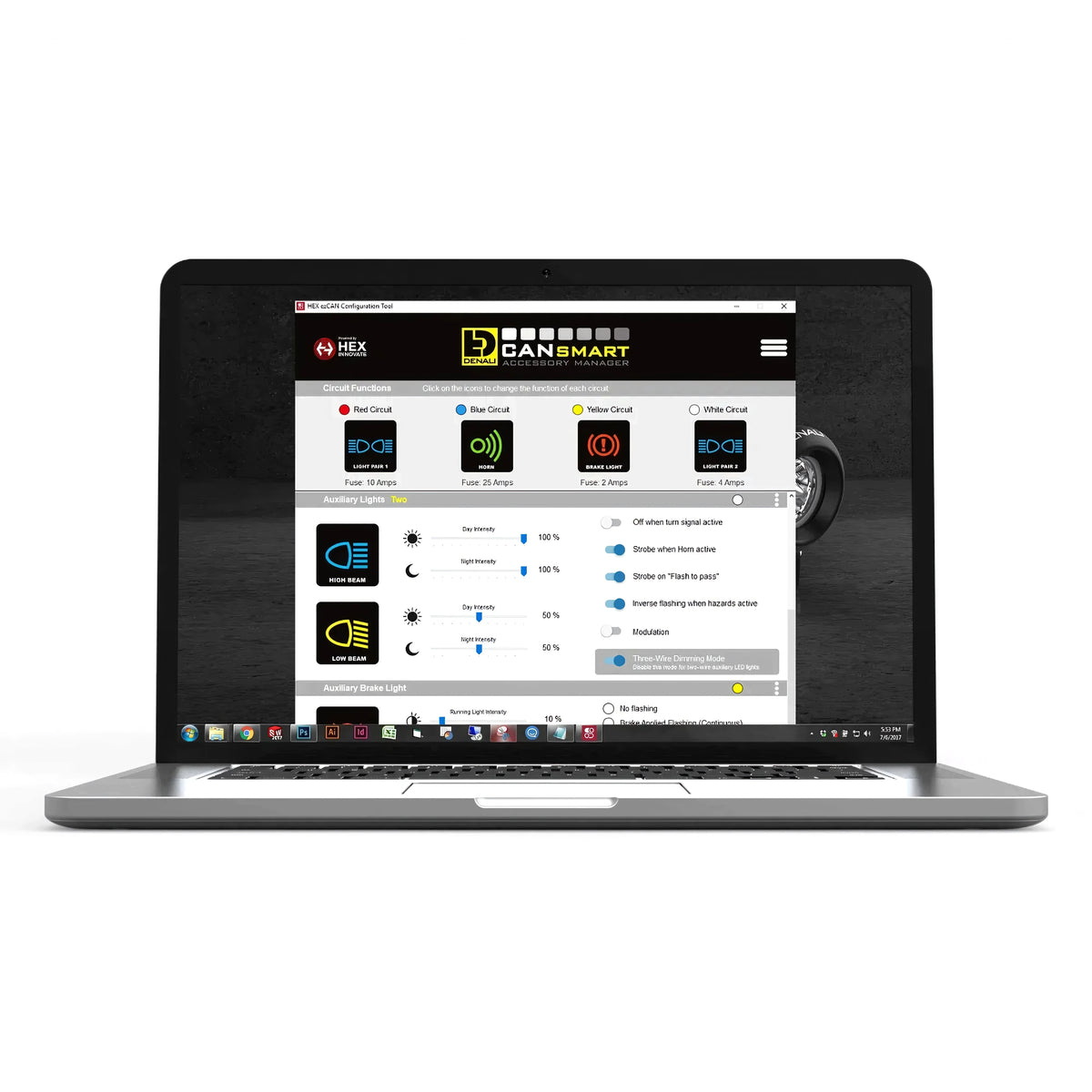

Software and Configuration

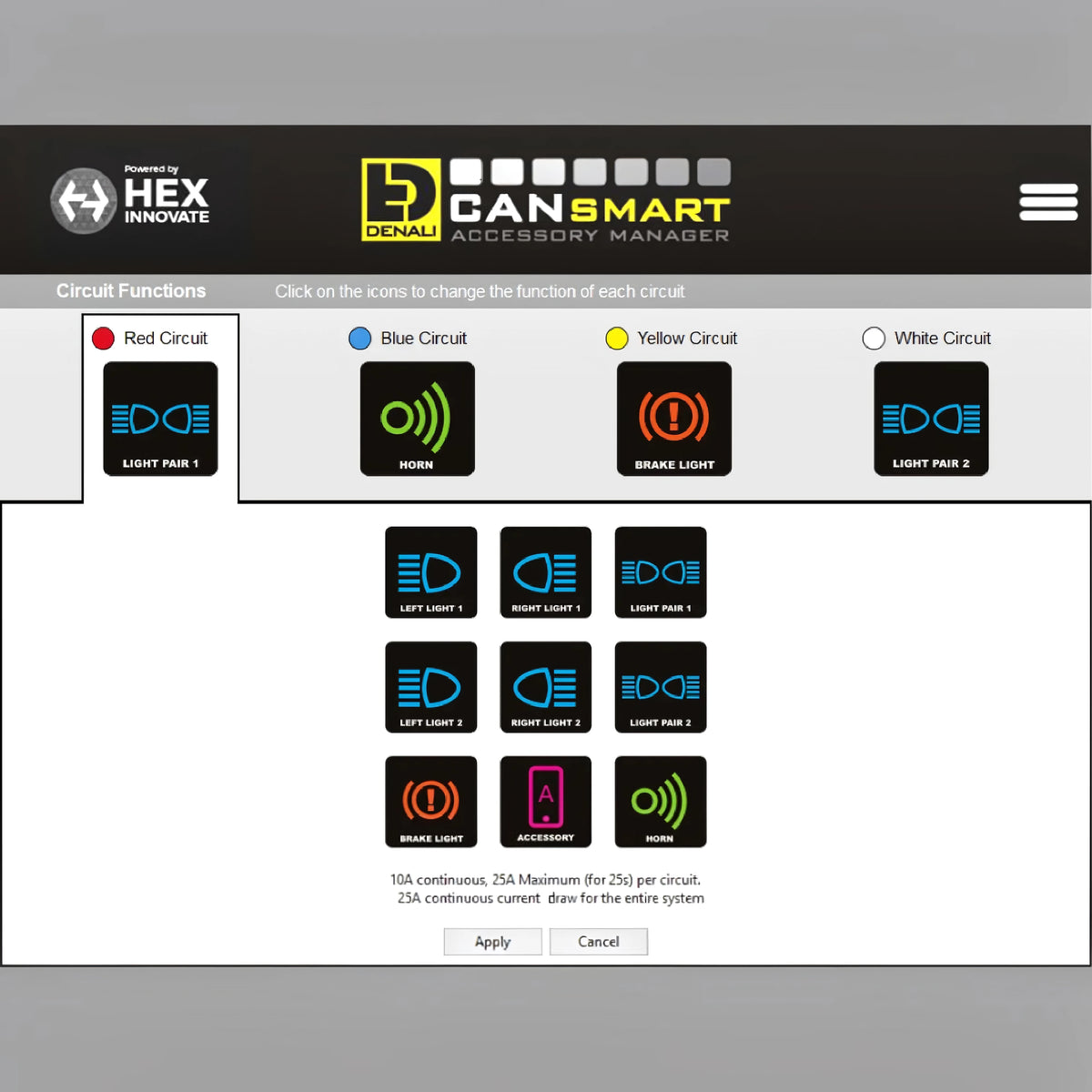

The DENALI CANsmart Accessory Manager Software is available for Windows and Mac. Use the software to configure supported circuit functions and customise connected accessories according to the instructions for your motorcycle and controller.

DENALI CANsmart Controller page.

Installation and Compatibility Notes

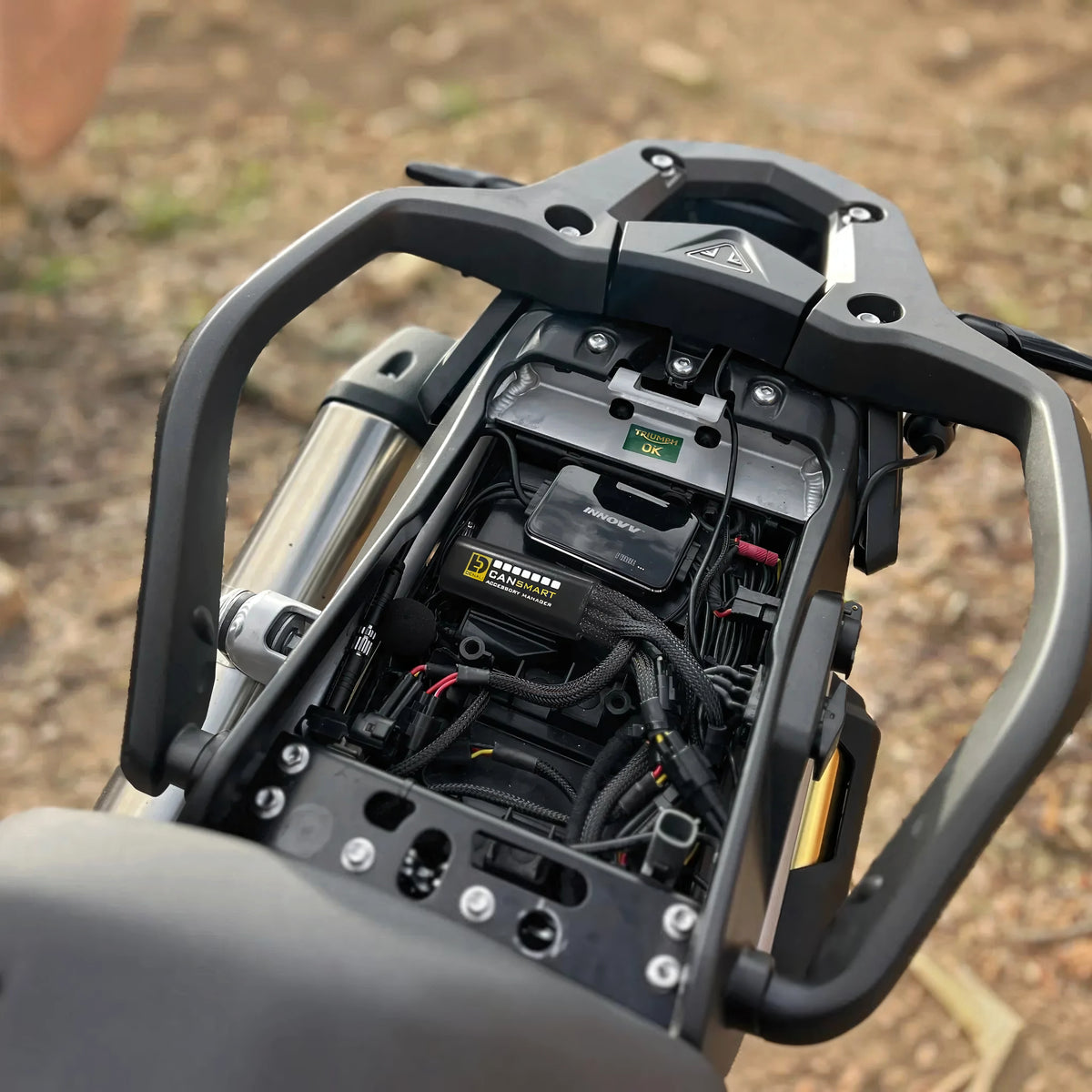

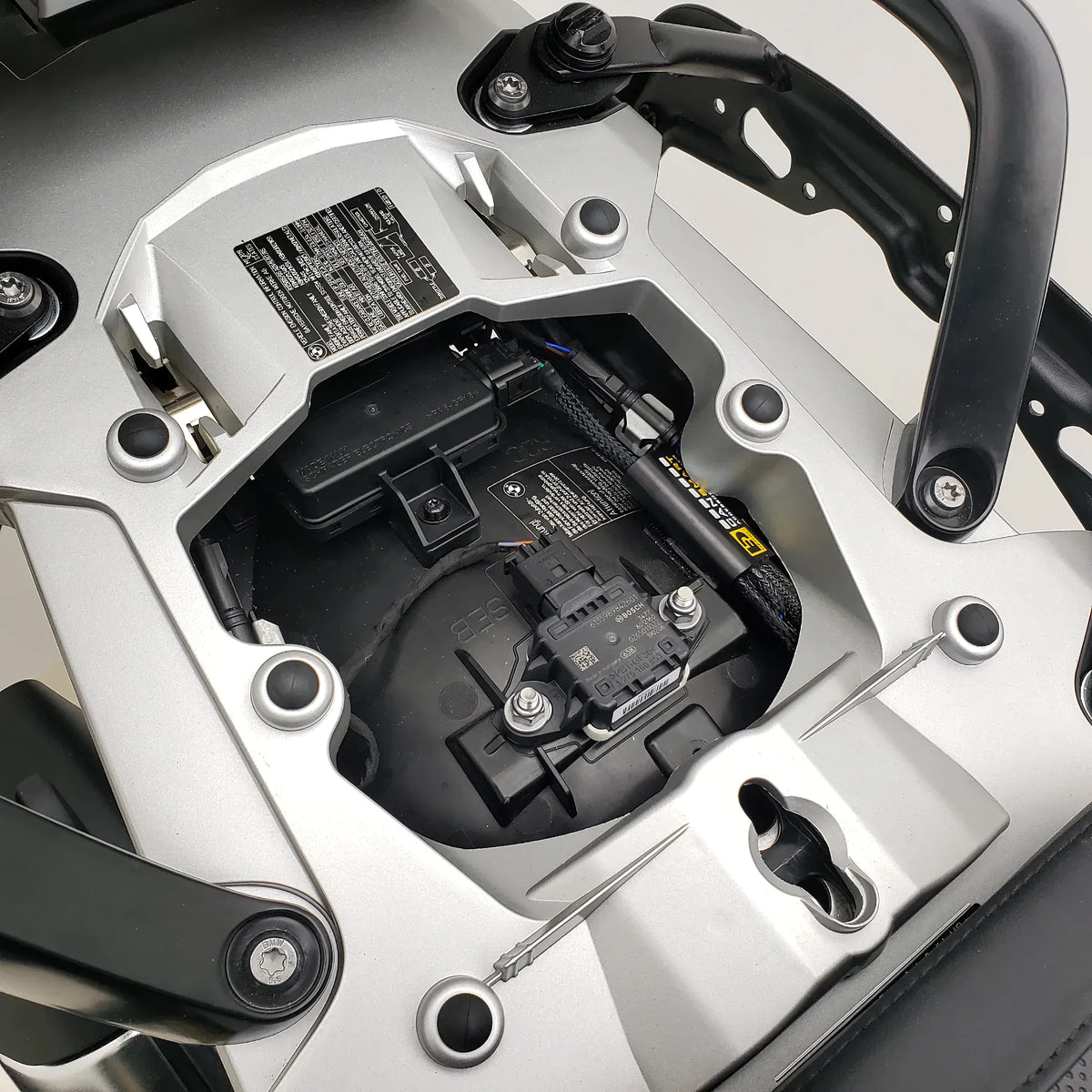

The controller is designed to simplify electrical accessory installation, but the correct wiring and configuration are essential. Follow the official installation instructions and check compatibility before connecting accessories.

Triumph Tiger 900 limitation: DENALI documents limitations on certain Tiger 900 wiring configurations. Day/night brightness differentiation and daytime modulation may not be available for the Aux 1 and Aux 2 circuits. The auxiliary brake-light function also requires the engine stop switch to be in the RUN position.

Professional installation is recommended if you are unfamiliar with motorcycle CANbus systems or electrical accessories.

Specifications

Brand: DENALI
Product Type: CANbus Accessory Controller
Generation: GEN II
Compatible Motorcycle Range: Triumph Tiger 1200 and Tiger 900 Series, subject to model-year fitment

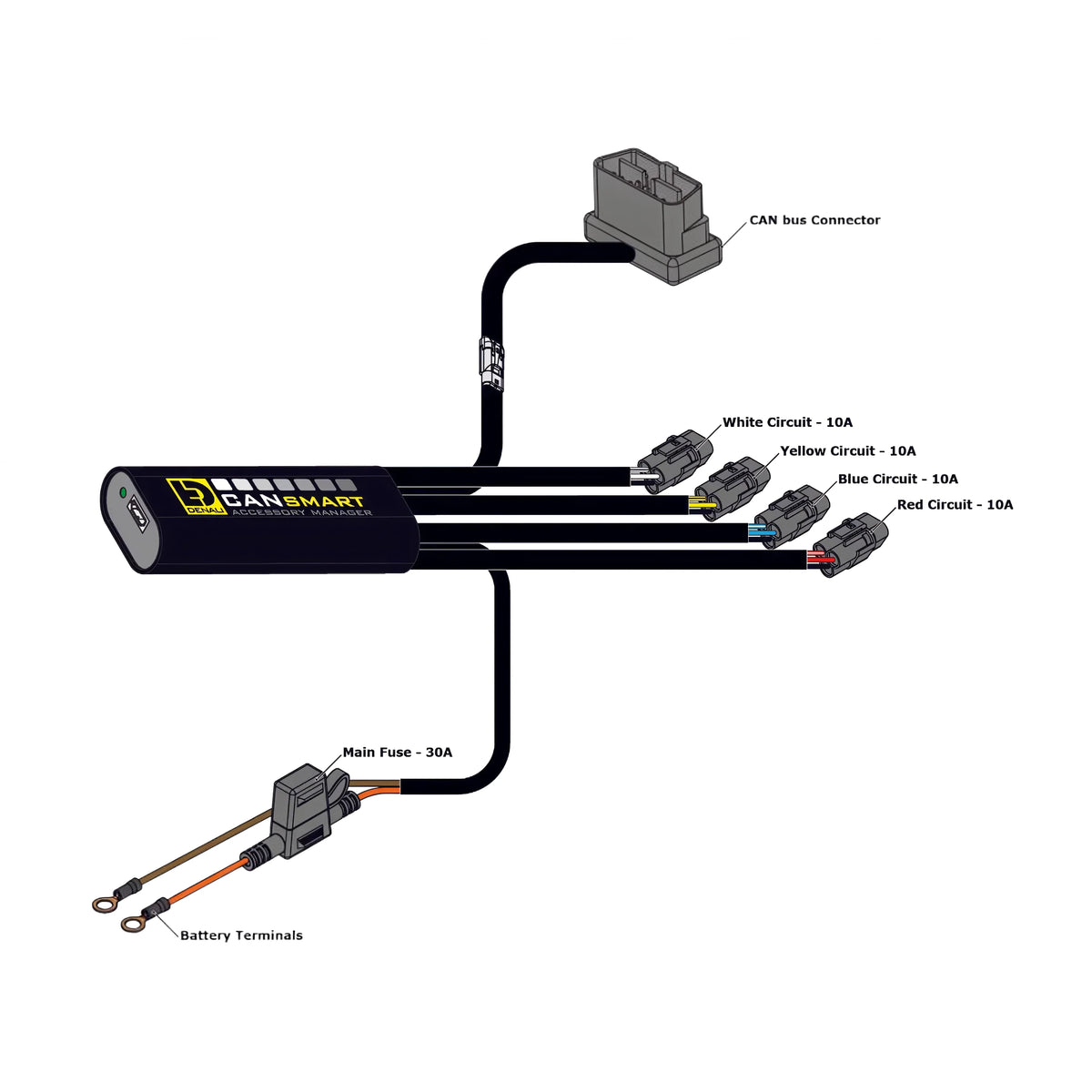

Accessory Circuits: 4 independently configurable circuits
Continuous Output per Circuit: Up to 10A
Maximum Combined Continuous Load: 30A
Accessory Power: Switched 12V output option
Configuration Software: DENALI CANsmart Accessory Manager
Software Compatibility: Windows and Mac

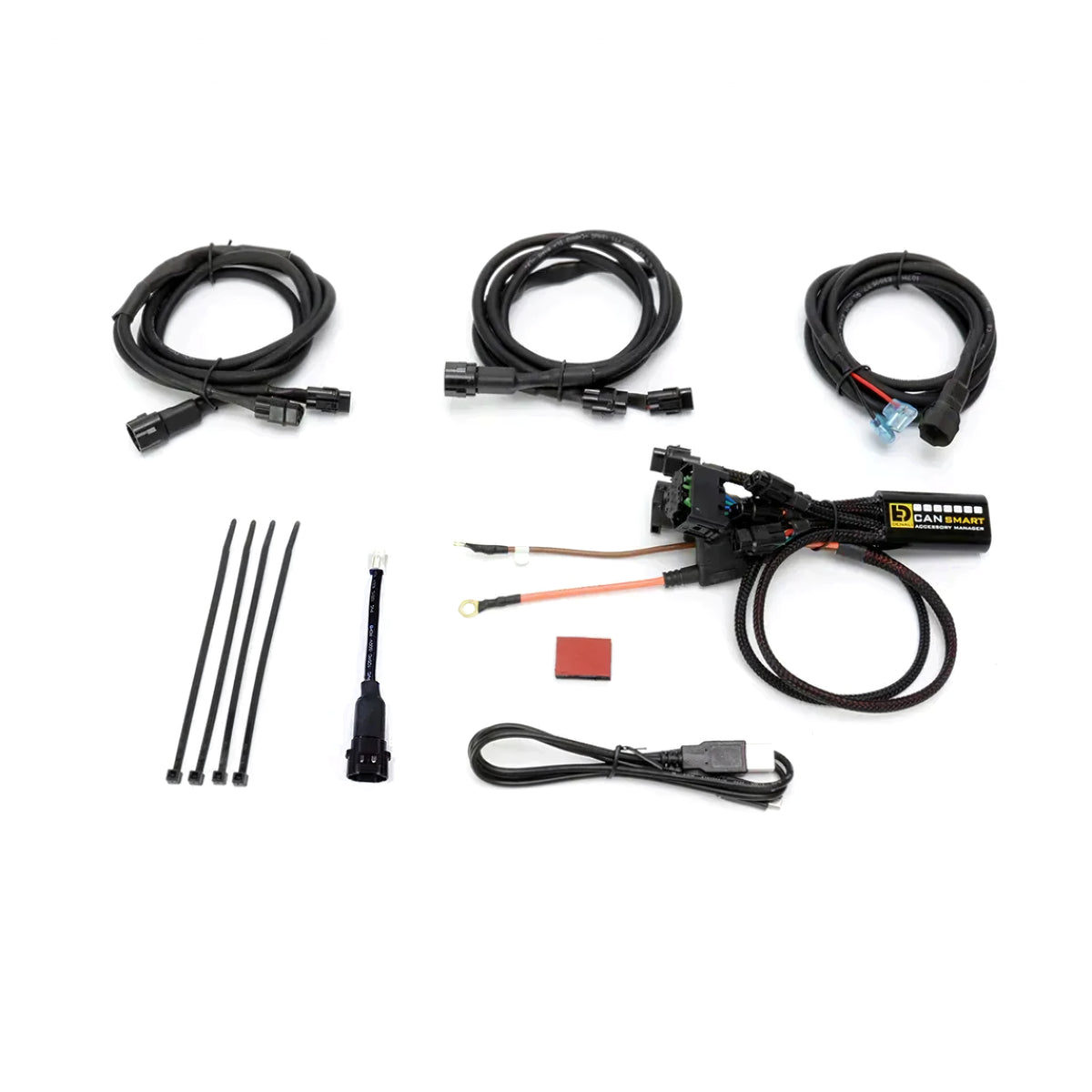

What's Included

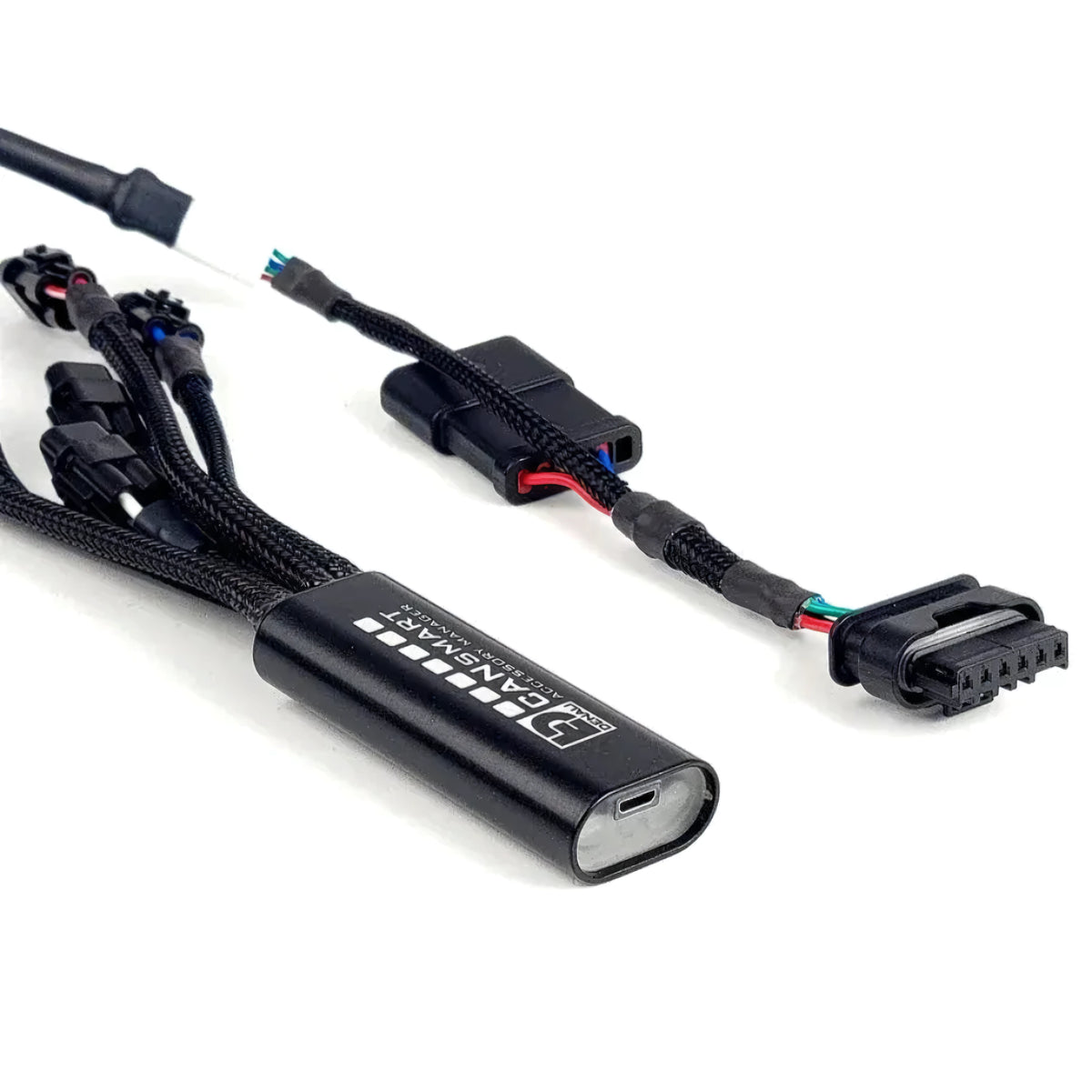

1 × DENALI CANsmart Controller GEN II
2 × 5.5-foot light extension cables
1 × 5-foot SoundBomb horn extension cable
1 × B6 brake light wiring adapter
1 × CANbus connection splitter cable
Cable ties
Adhesive hook-and-loop fastener
1 × Micro USB programming cable

Features

Four Configurable Circuits: Independently configure four circuits to operate compatible motorcycle accessories.
Plug-and-Play Integration: Designed to simplify accessory installation by connecting to the motorcycle's CANbus electrical system.
GEN II Power Output: Each circuit supports up to 10 amps of continuous power, with a maximum combined controller load of 30 amps continuous.
Auxiliary Light Control: Adjust lighting intensity, switch lights on or off and configure high/low beam synchronisation.
Custom Lighting Functions: Configure light modulation, flash-to-pass, cancellation with turn signals and inverse flashing with hazard lights where supported.
Smart Brake Technology: Supports deceleration-activated auxiliary brake lighting with adjustable sensitivity and minimum activation speed.
Custom Brake Light Patterns: Configure supported auxiliary brake lights with selectable flashing patterns.
Horn Integration: Connect compatible high-power aftermarket horns, including the DENALI SoundBomb range, without an additional relay or harness where the supported setup permits.
Switched 12V Power: Configure an accessory circuit to provide switched power for compatible electronics.
Delayed Power Timeout: Keep supported accessories powered for up to 30 seconds after switching off the ignition.

Shipping & Return

Shipping & Delivery – Quick Summary

Shipping Coverage: We currently ship across India only.
Order Processing: Orders are usually processed within 2 business days, subject to product availability.
Delivery Partners: We work with trusted courier services like Delhivery, BlueDart, India Post, and others.
Delivery Timeline: Estimated delivery time is shown at checkout and may vary based on location and courier performance.
Shipping Charges: Calculated at checkout based on order weight, shipping method, and destination.
Order Tracking: Tracking details are shared via email once your order is shipped.
Delivery Support: For delays or delivery issues, contact 📞 +91 - 8867344145 support@motodrift.co.in.
Policy Updates: Shipping policies may be updated periodically without prior notice.

By placing an order, you agree to Motodrift’s Shipping & Delivery Policy.

Frequently Asked Questions

What does the DENALI CANsmart Controller GEN II do?

It connects with a compatible Triumph motorcycle's CANbus system to simplify installation and control of up to four configurable accessory circuits.

How many accessory circuits does the CANsmart GEN II have?

It has four independently configurable circuits. Each circuit supports up to 10A continuous, with a maximum combined controller load of 30A continuous.

Can I use the CANsmart Controller to control auxiliary lights?

Yes. Supported functions include on/off control, dimming, high/low synchronisation, modulation and turn-signal cancellation, depending on the accessory and motorcycle configuration.

Which Triumph Tiger motorcycles are listed as compatible?

The supplied fitment list covers selected Triumph Tiger 1200 GT, GT PRO and GT Explorer models from 2022–2023, and selected Tiger 900 GT, GT Low, GT PRO, Rally and Rally PRO models from 2020–2023. Confirm exact fitment before purchase.

Are there any limitations when using the CANsmart on a Triumph Tiger 900?

DENALI documents limitations on certain Tiger 900 wiring configurations, including unavailable day/night brightness differentiation and daytime modulation for Aux 1 and Aux 2. The auxiliary brake-light function requires the engine stop switch to be in the RUN position.
