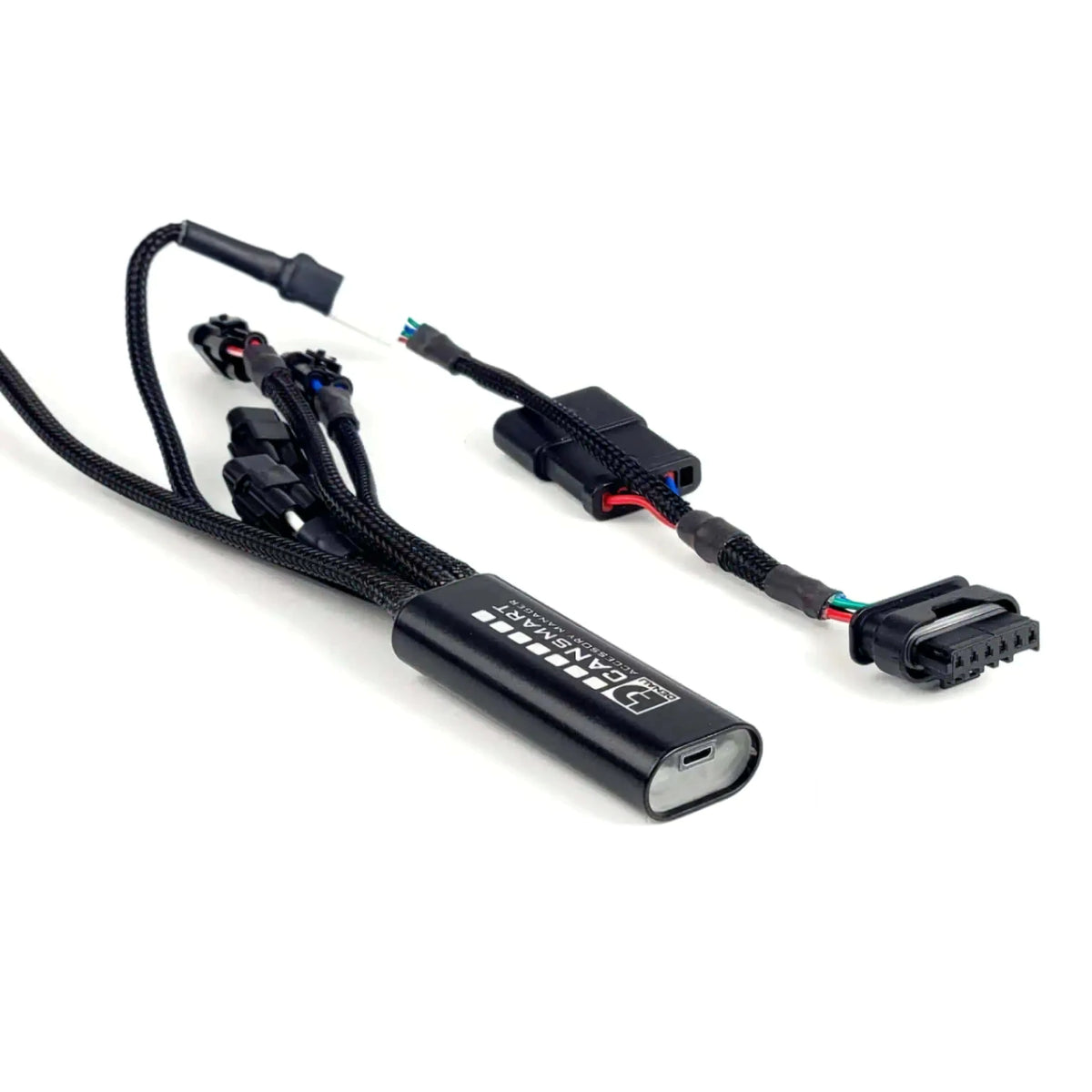

DENALI CANsmart GEN II controller for BMW motorcycles with black wiring harness and plug-and-play connectors.

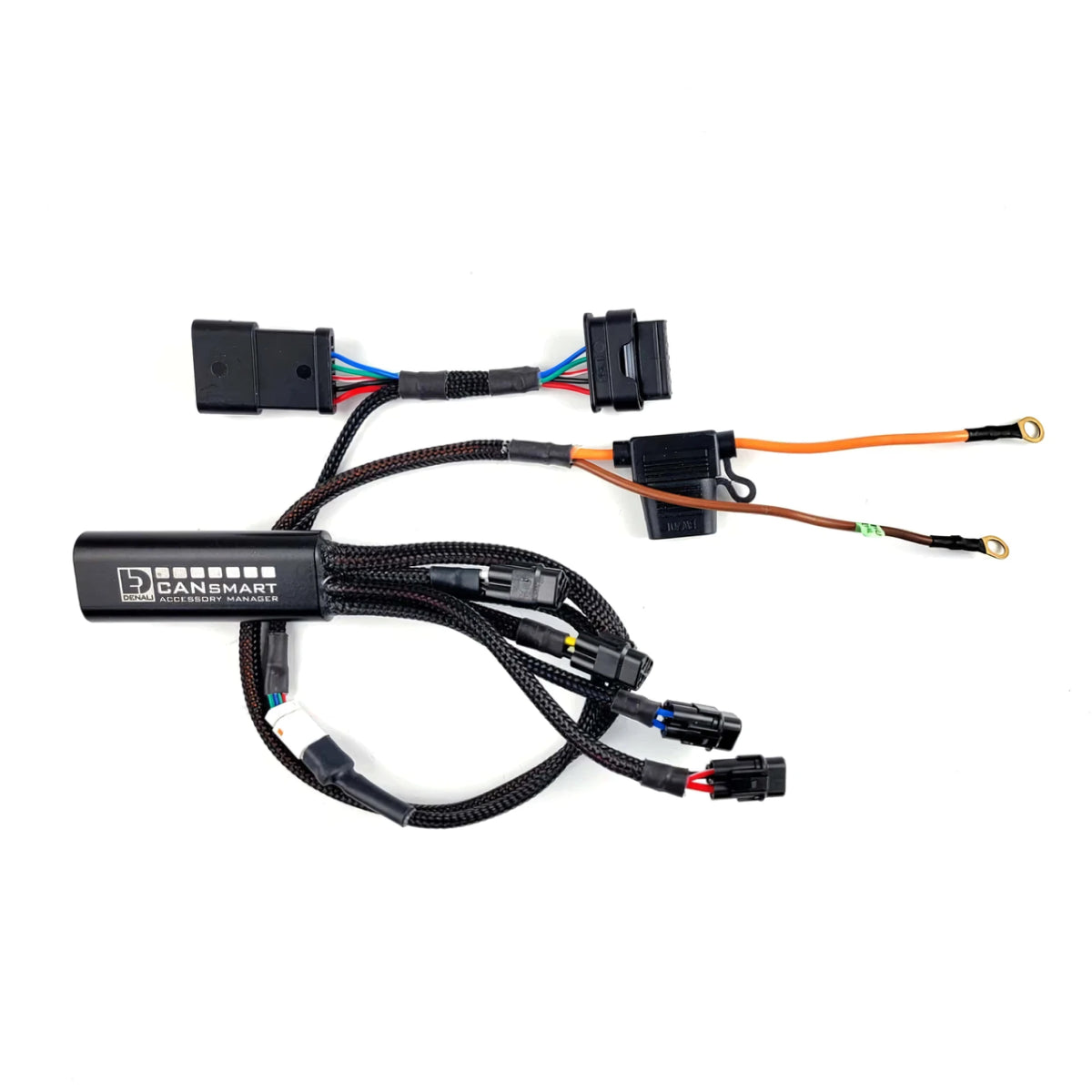

DENALI CANsmart GEN II controller with black wiring harness and connectors for BMW motorcycle accessories.

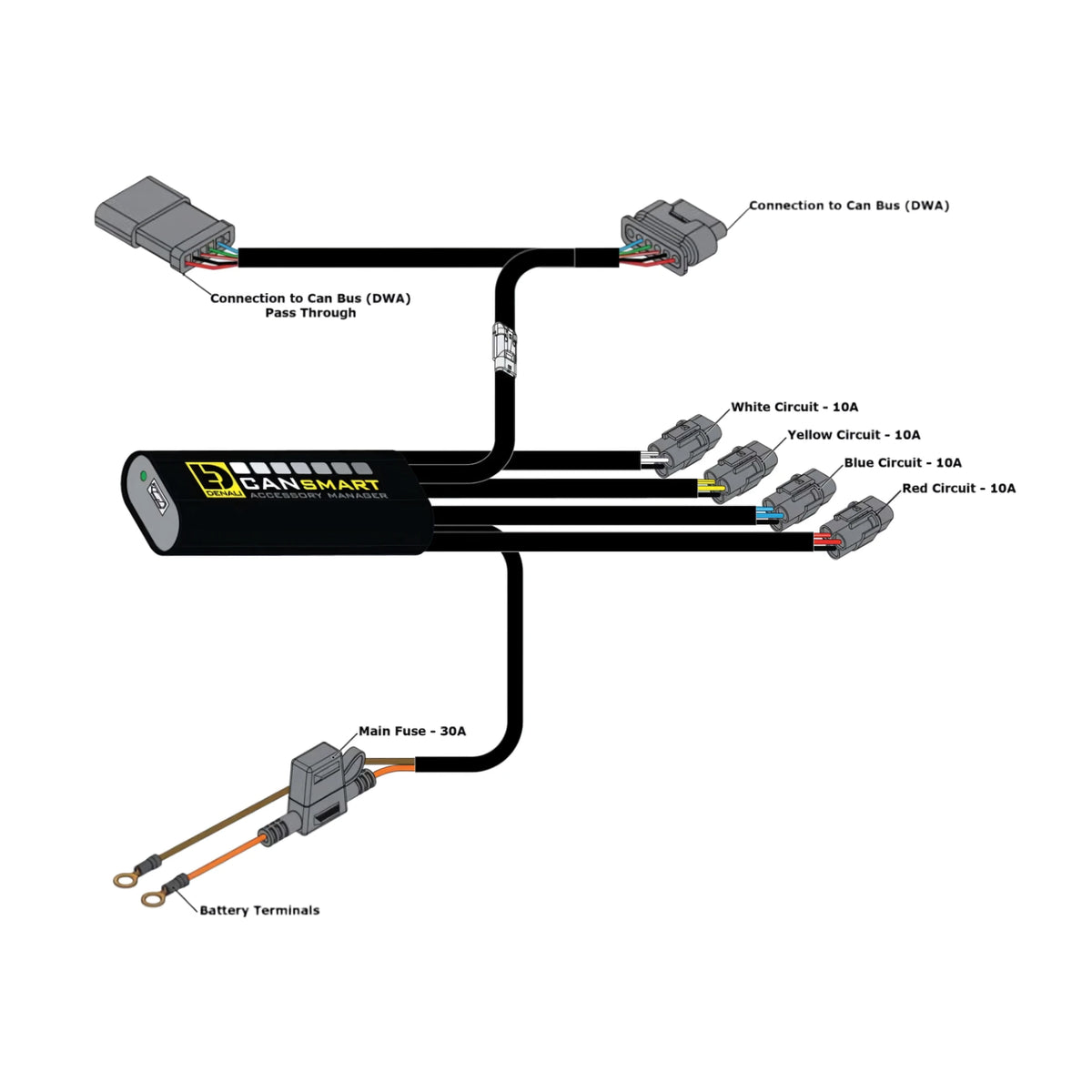

DENALI CANsmart GEN II controller wiring diagram for BMW R 1300 GS showing circuits and battery connections.

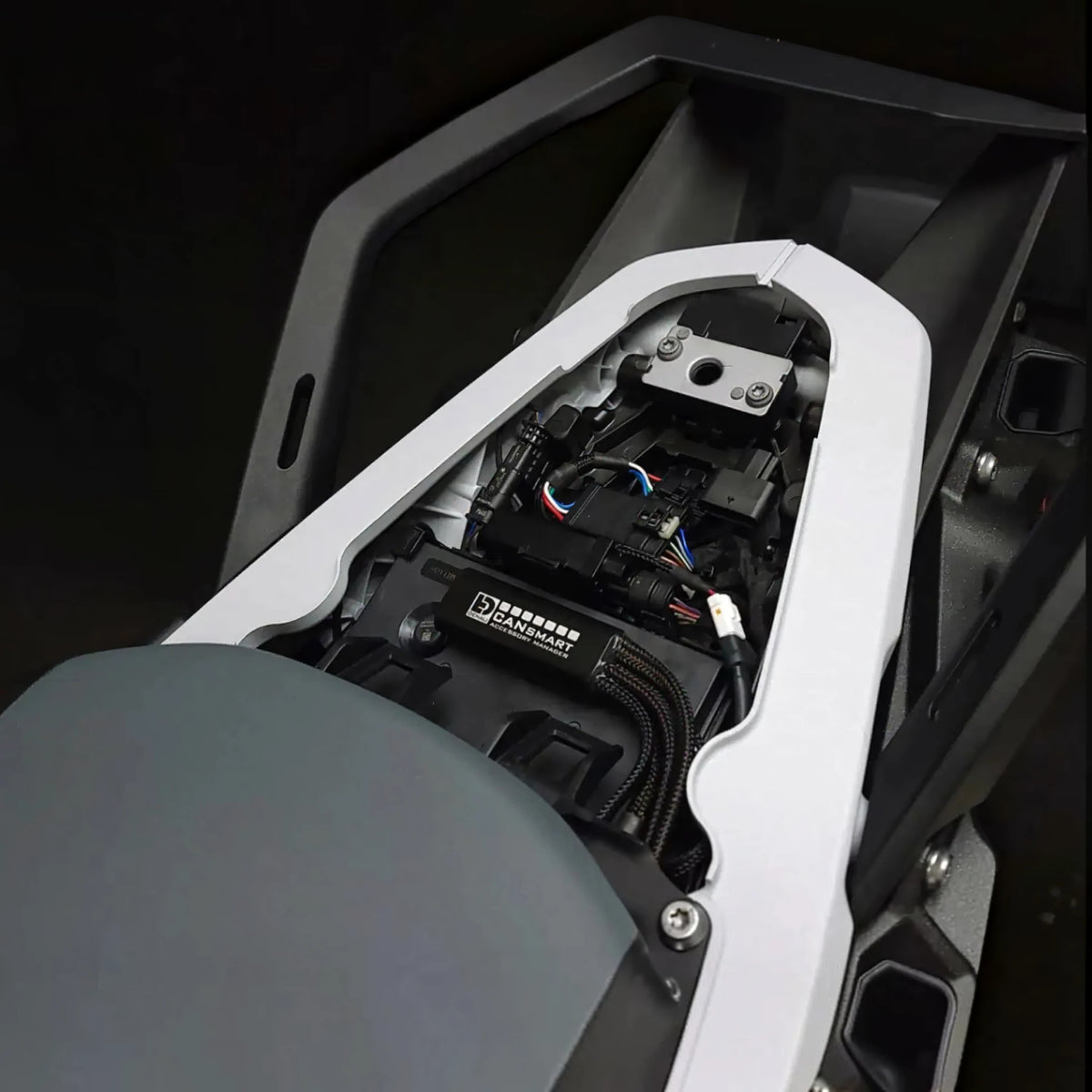

DENALI CANsmart GEN II controller installed under the seat of a BMW R 1300 GS motorcycle.

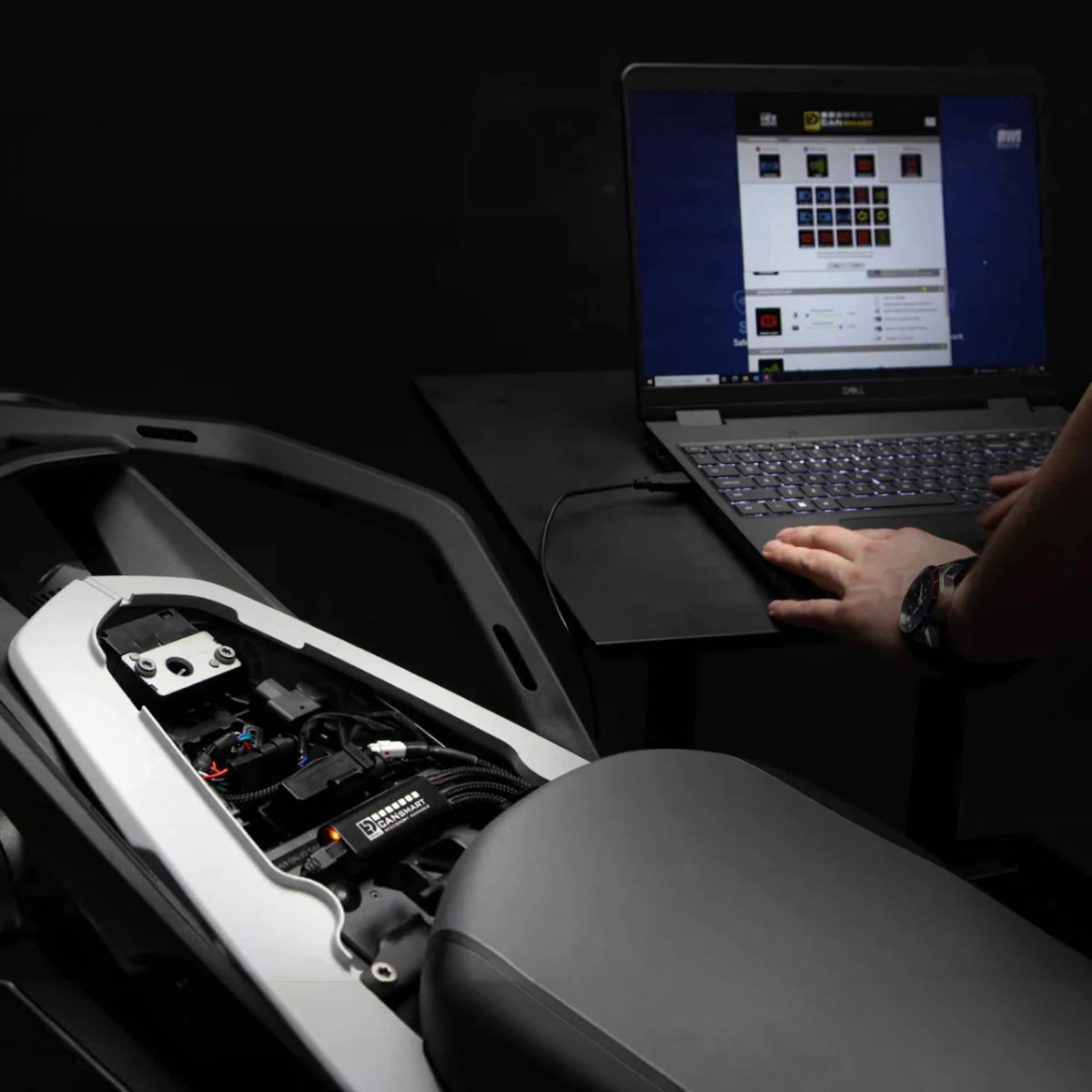

DENALI CANsmart GEN II controller being configured on a laptop for a BMW motorcycle electrical system.

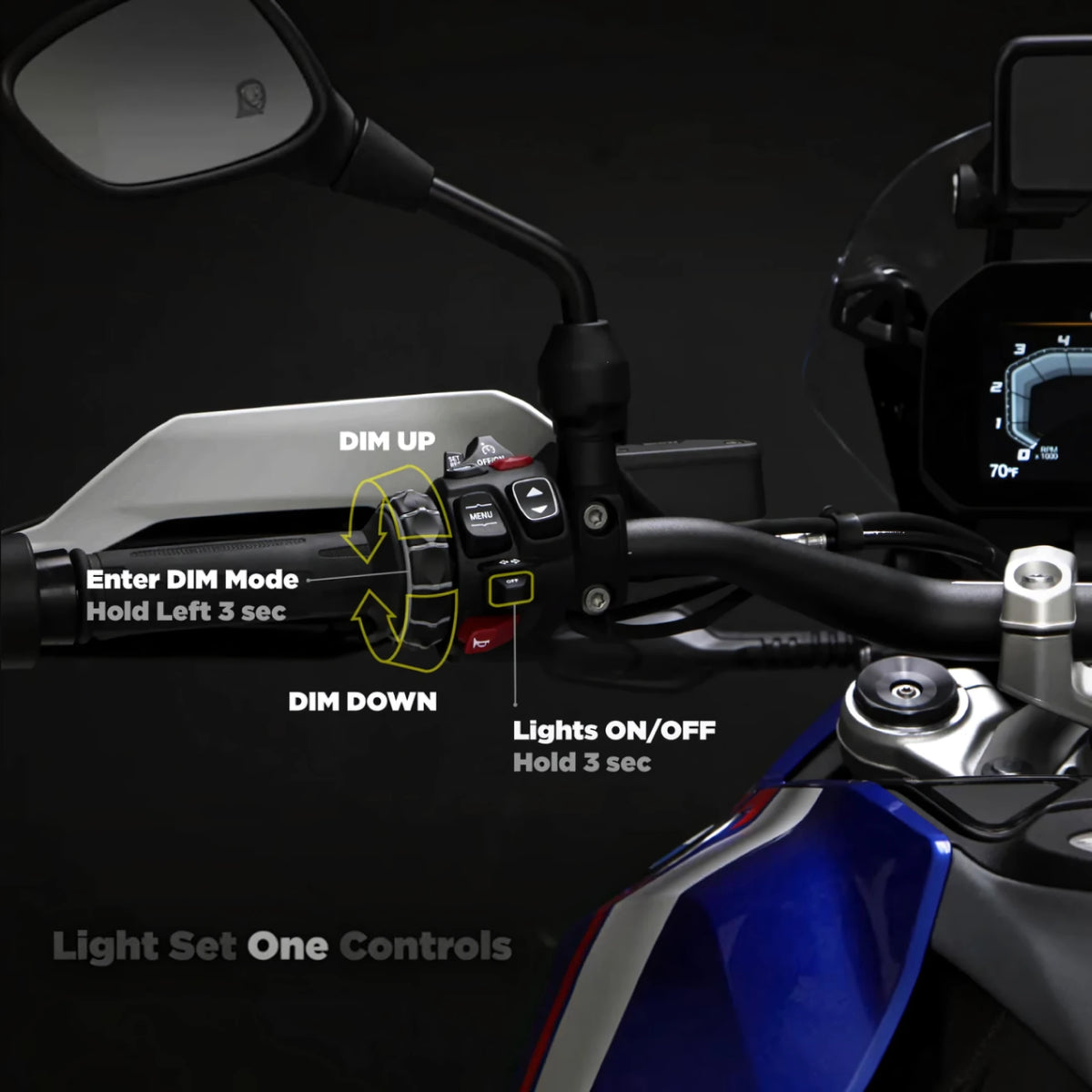

DENALI CANsmart controller interface showing BMW motorcycle handlebar controls for auxiliary light settings.

Rider on a BMW R 1300 GS motorcycle with bright auxiliary LED driving lights on a dusty desert trail.

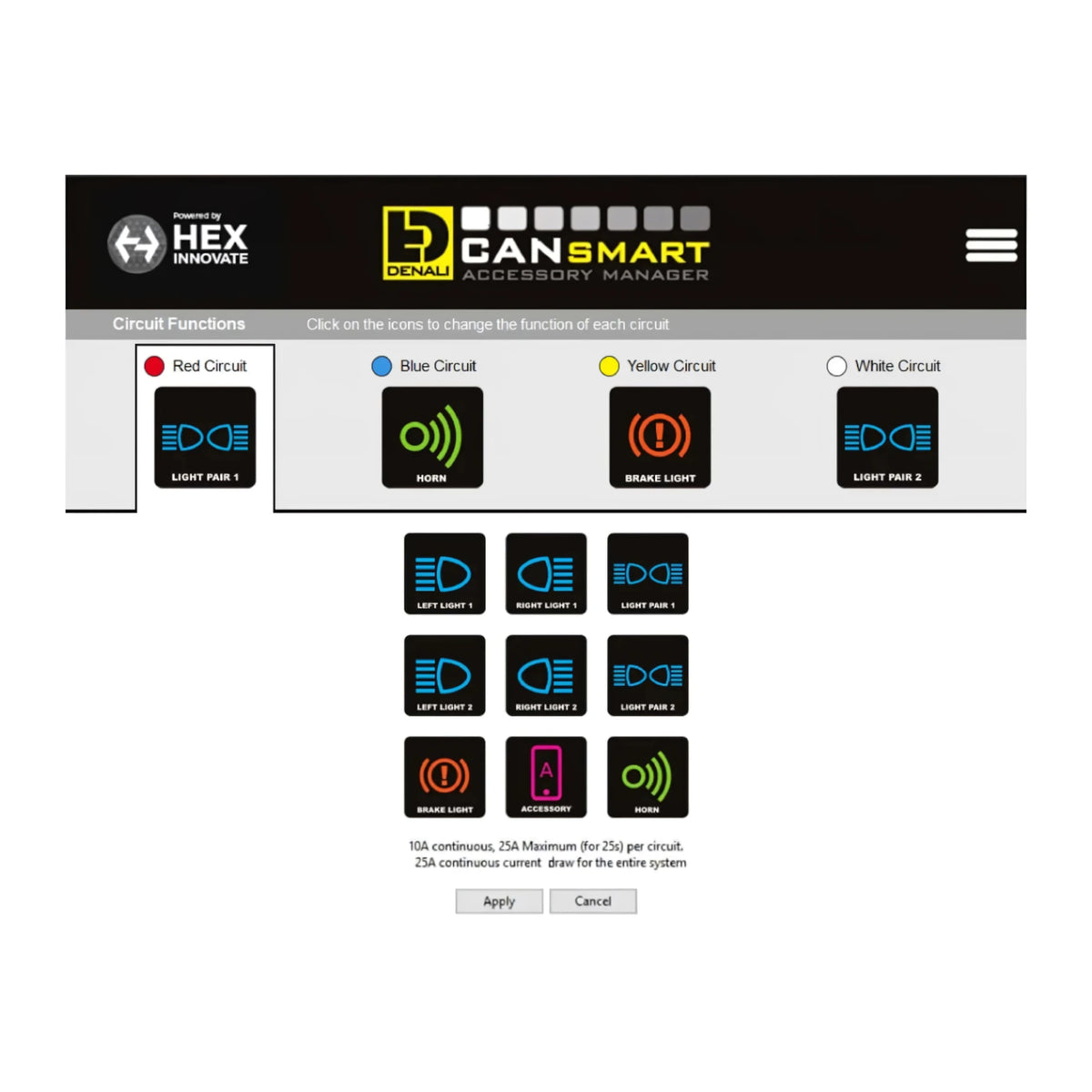

DENALI CANsmart software interface showing circuit configuration options for motorcycle accessories.

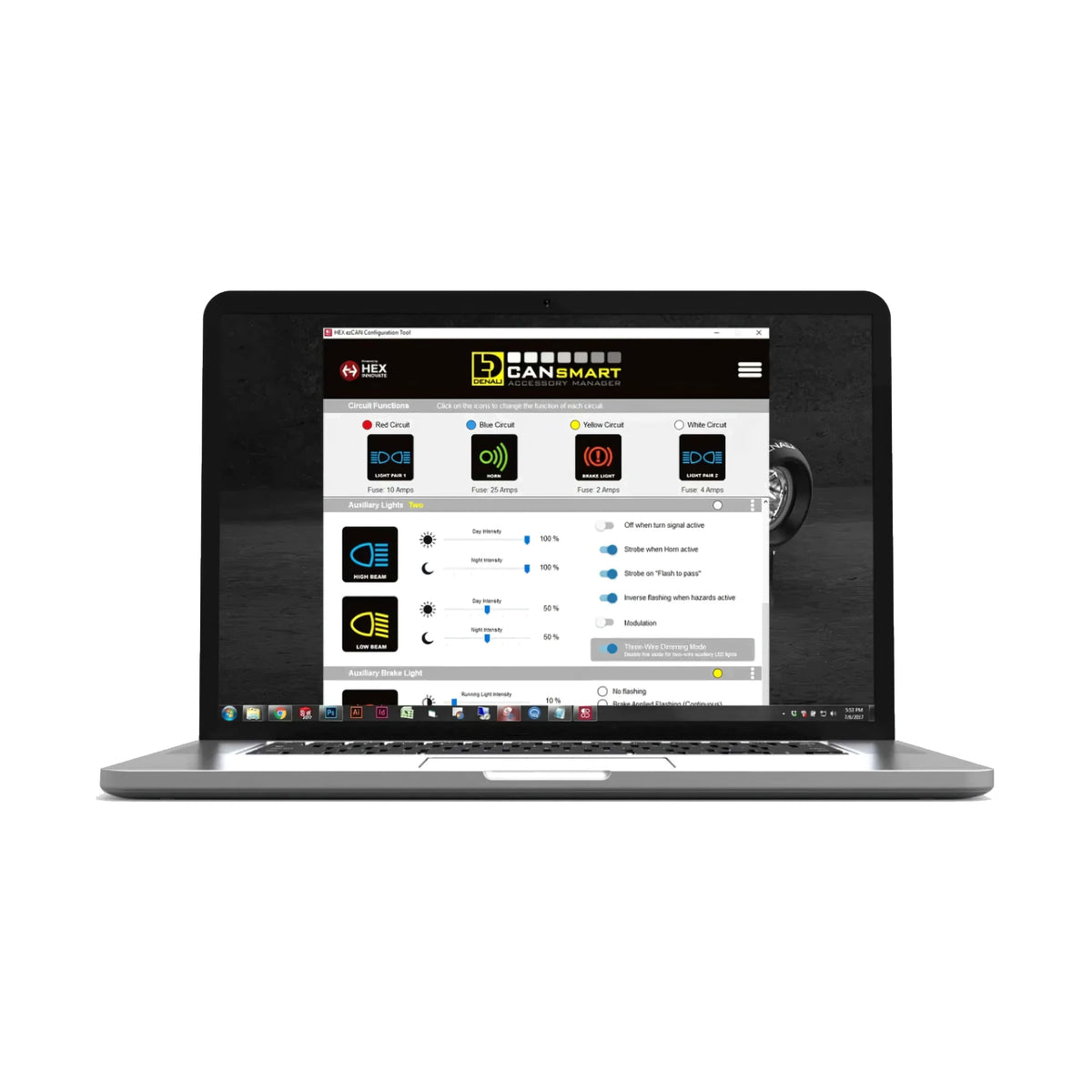

DENALI CANsmart software interface on a laptop screen for configuring motorcycle accessory circuits.

DENALI CANsmart GEN II Controller for BMW R 1300 GS

Rs. 34,100.00

150+ Authorized Brands
4.7 Rider Rating
100% Authentic
250+ Cities Served
2 Stores
24hrs Express Delivery

150+ Authorized Brands
4.7 Rider Rating
100% Authentic
250+ Cities Served
2 Stores
24hrs Express Delivery

Vendor: Denali

SKU: DNL.WHS.25900

Description

Intelligent Accessory Control for BMW R 1300 GS Motorcycles

Simplify motorcycle accessory installation with the DENALI CANsmart GEN II Controller for BMW R 1300 GS. Designed to integrate with the motorcycle's CANbus electrical system, this plug-and-play accessory controller helps manage compatible auxiliary driving lights, horns, brake lights and other electrical accessories through four independently configurable circuits.

The controller works with the BMW WonderWheel for supported functions and the DENALI CANsmart Accessory Manager Software for configuration. Its GEN II design supports up to 10 amps of continuous power per circuit, with a maximum combined continuous load of 30 amps across the controller.

Customisable Accessory Functions

Auxiliary Lighting Control

Configure compatible auxiliary lights to switch between high and low settings using the factory high-beam switch. Additional supported functions include independent on/off control, dimming, light modulation and cancellation of the corresponding auxiliary light when a turn signal is activated.

Brake Light and Safety Functions

The controller supports deceleration-activated Smart Brake technology and programmable auxiliary brake-light flash patterns when used with compatible equipment. These functions can be configured according to your riding requirements and the connected accessories.

Horn and Electrical Accessory Integration

Connect supported aftermarket horns and configure compatible auxiliary lights to respond when the horn is activated. The switched accessory circuit can also supply power to compatible devices such as GPS units, phone chargers and heated riding gear, provided their electrical requirements remain within the controller's limits.

Vehicle Compatibility

The supplied retailer listing identifies this controller for the BMW R 1300 GS. DENALI's current product information also lists additional compatible variants, subject to the specific model year and trim.

BMW R 1300 GS Trophy (2024–2026)
BMW R 1300 GS Triple Black (2024–2026)
BMW R 1300 GS Option 719 Tramuntana (2024–2025)
BMW R 1300 GS Option 719 Biscaya (2026)
BMW R 1300 GS Adventure Trophy (2025–2026)
BMW R 1300 GS Adventure Triple Black (2025–2026)
BMW R 1300 GS Adventure Option 719 Karakorum (2025–2026)
BMW R 12 G/S (2026)

Confirm your exact model, model year and trim against the latest manufacturer fitment information before ordering.

Software and Configuration

The DENALI CANsmart Accessory Manager Software is available for Windows and Mac. Use the software to configure supported circuits and customise connected accessories according to the controller and motorcycle instructions.

Download the official DENALI CANsmart Accessory Manager Software.

Installation and Safety Information

The controller is designed to simplify accessory wiring, but correct installation and circuit configuration remain essential. Follow the supplied installation instructions, confirm electrical compatibility and ensure connected accessories remain within the controller's output limits.

Professional installation is recommended if you are unfamiliar with motorcycle CANbus systems or electrical accessories. Test all connected lights, horn and brake-light functions before riding.

View DENALI CANsmart GEN II Installation Instructions (PDF)

Specifications

Brand: DENALI
Product Type: CANbus Accessory Controller
Generation: GEN II
Primary Motorcycle Application: BMW R 1300 GS
Accessory Circuits: 4 independently configurable circuits
Maximum Continuous Output per Circuit: 10A
Maximum Combined Continuous Load: 30A
Accessory Power Option: Switched 12V output
Control Interface: BMW WonderWheel and compatible software functions
Configuration Software: DENALI CANsmart Accessory Manager
Software Compatibility: Windows and Mac

What's Included

1 × DENALI CANsmart GEN II Controller
2 × 5.5-foot light extension cables
1 × 5-foot SoundBomb horn extension cable
1 × B6 brake-light wiring adapter
4 × Cable ties
1 × Adhesive Dual Lock fastener
1 × USB-to-Micro-USB programming cable
Installation instructions

Features

Four Configurable Circuits: Independently configure four circuits for compatible motorcycle accessories.
Plug-and-Play Integration: Connects with the compatible BMW CANbus system to simplify accessory installation.
GEN II Power Capacity: Supports up to 10A continuous per circuit, with a 30A maximum combined continuous load.
BMW WonderWheel Control: Adjust supported accessory functions using the original motorcycle controls.
Auxiliary Light Management: Configure supported lights for on/off control, dimming and high/low synchronisation.
Custom Lighting Functions: Includes supported settings for light modulation, flash-to-pass, turn-signal cancellation and inverse flashing with hazard lights.
Smart Brake Technology: Supports deceleration-activated auxiliary brake lighting with adjustable sensitivity and minimum activation speed.
Programmable Brake Patterns: Configure supported auxiliary brake lights with selectable flash patterns.
Horn Integration: Supports compatible aftermarket horns, including the DENALI SoundBomb range.
Switched 12V Power: Configure an accessory circuit to supply switched power to compatible electronics.
Delayed Power Timeout: Supported accessories can remain powered for up to 30 seconds after the ignition is switched off.

Shipping & Return

Shipping & Delivery – Quick Summary

Shipping Coverage: We currently ship across India only.
Order Processing: Orders are usually processed within 2 business days, subject to product availability.
Delivery Partners: We work with trusted courier services like Delhivery, BlueDart, India Post, and others.
Delivery Timeline: Estimated delivery time is shown at checkout and may vary based on location and courier performance.
Shipping Charges: Calculated at checkout based on order weight, shipping method, and destination.
Order Tracking: Tracking details are shared via email once your order is shipped.
Delivery Support: For delays or delivery issues, contact 📞 +91 - 8867344145 support@motodrift.co.in.
Policy Updates: Shipping policies may be updated periodically without prior notice.

By placing an order, you agree to Motodrift’s Shipping & Delivery Policy.

Frequently Asked Questions

What does the DENALI CANsmart GEN II Controller do?

It integrates with a compatible BMW motorcycle's CANbus system to control auxiliary lights, horns, brake lights and other supported electrical accessories through four configurable circuits.

How many accessory circuits does the DENALI CANsmart GEN II have?

It has four independently configurable circuits. Each supports up to 10A continuous output, with a maximum combined controller load of 30A continuous.

Can I control the CANsmart through the BMW WonderWheel?

Yes. Supported accessory functions can be controlled through the BMW WonderWheel or configured using the DENALI CANsmart Accessory Manager Software.

Which BMW motorcycles are compatible with this controller?

The supplied retailer listing identifies the BMW R 1300 GS. DENALI's current fitment information also lists selected R 1300 GS Adventure variants and the 2026 BMW R 12 G/S. Confirm your exact model year and trim before ordering.

Can the CANsmart Controller power a GPS or phone charger?

It provides a configurable switched 12V accessory power option for compatible electronics, provided the connected device's electrical requirements remain within the controller's limits.
