RAM Mounts M10 Threaded Ball Adapter

RAM Mounts M10 Threaded Ball Adapter with B and C Size Rubber Ball

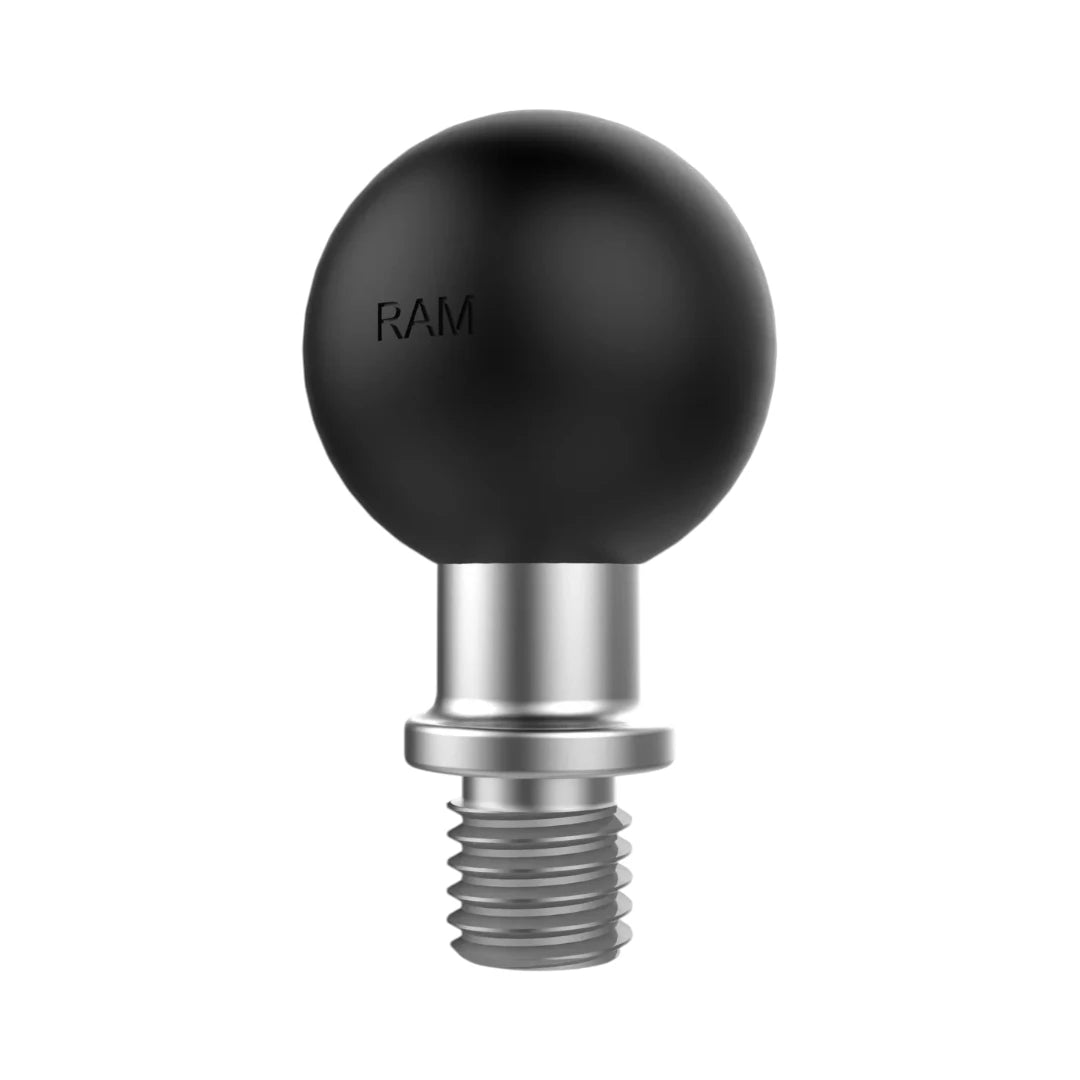

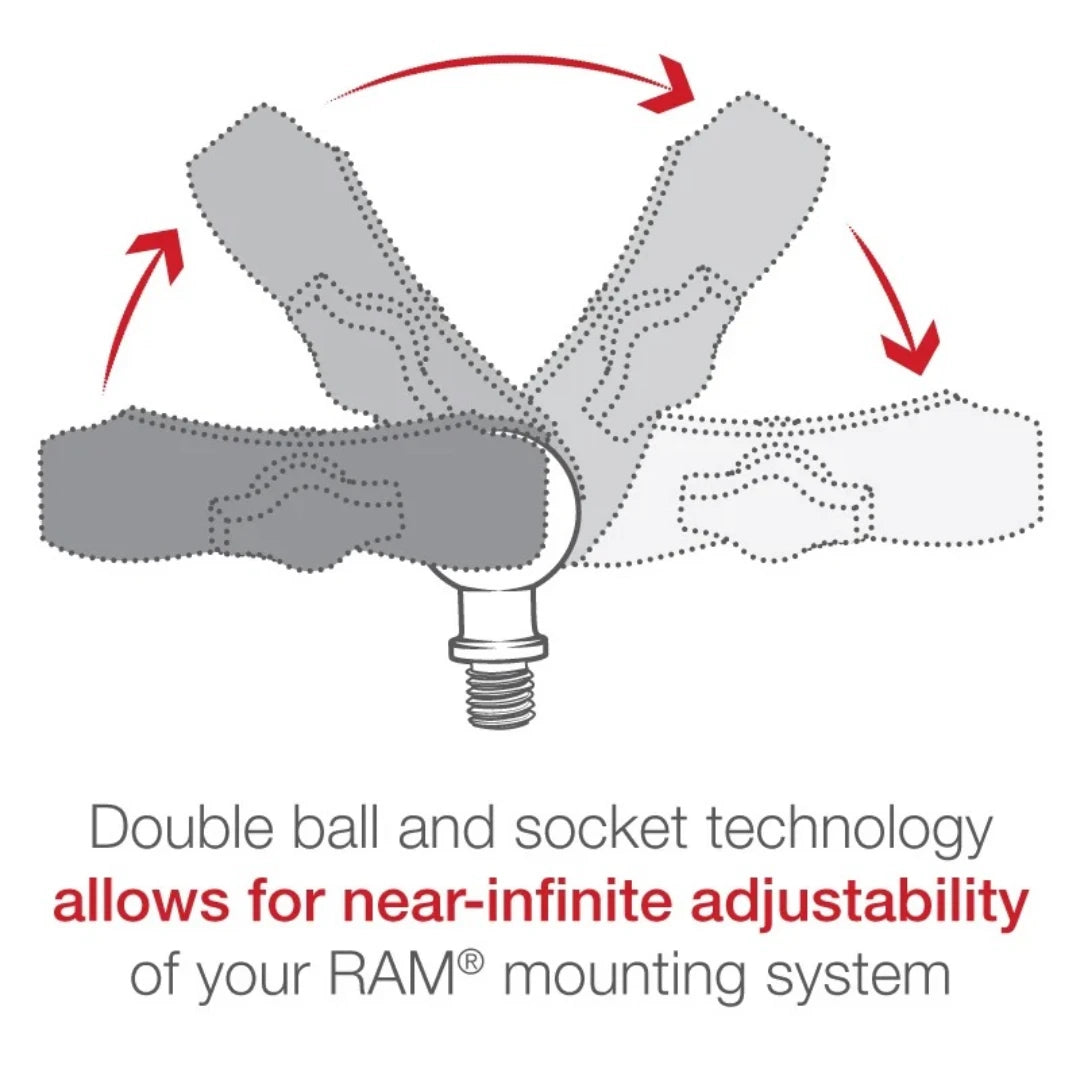

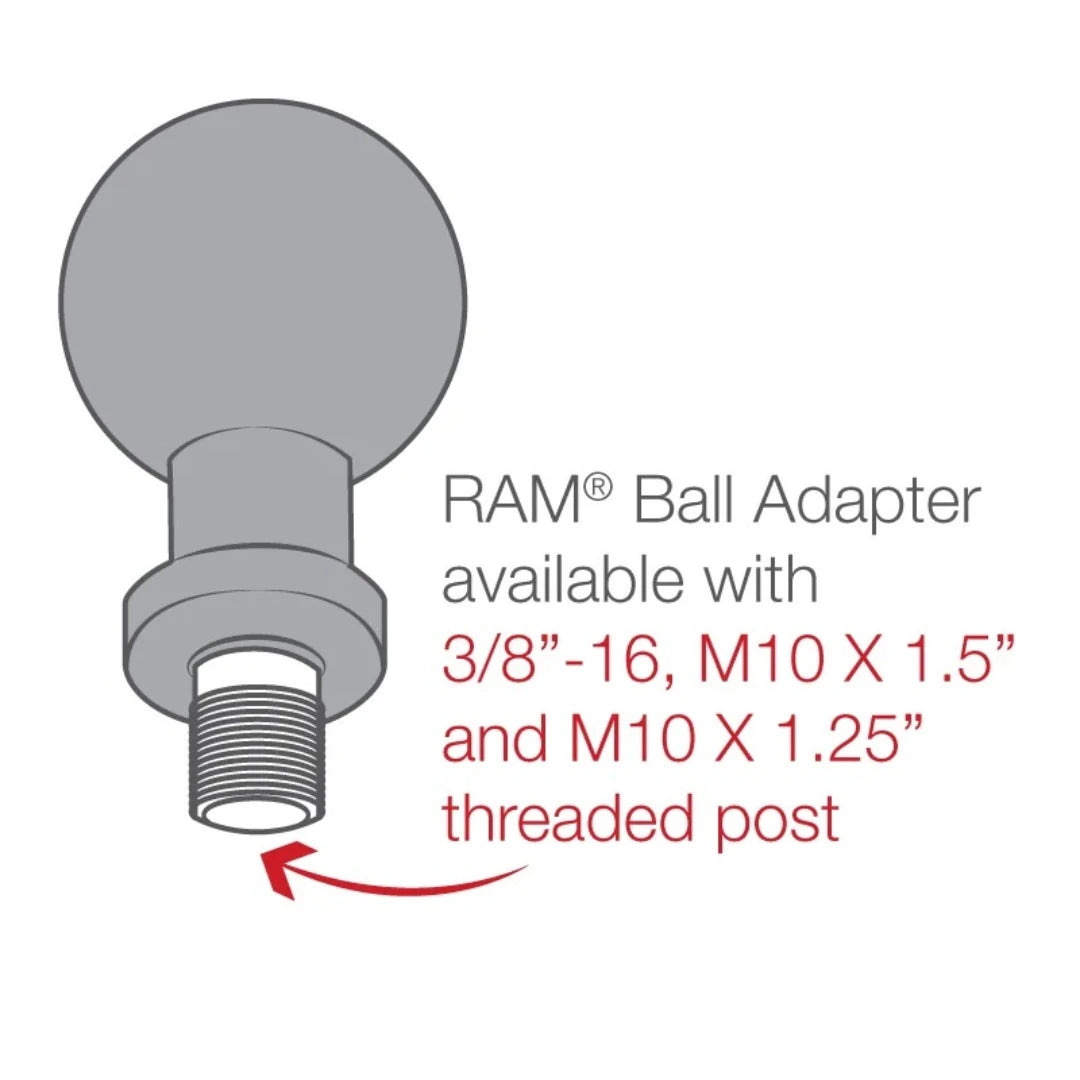

The RAM Mounts M10 Threaded Ball Adapter is a modular mounting component designed to connect compatible threaded mounting points to the RAM ball-and-socket mounting system. It combines a male M10 threaded post with a rubber ball, allowing a compatible RAM double socket arm to be attached for positioning a suitable device or accessory.

Made from marine-grade aluminium, the adapter is designed for use in demanding mounting applications. The threaded post fits a compatible female threaded hole, while the rubber ball forms the connection point for the corresponding RAM socket arm. Correct thread pitch and ball-size selection are essential for a secure and compatible installation.

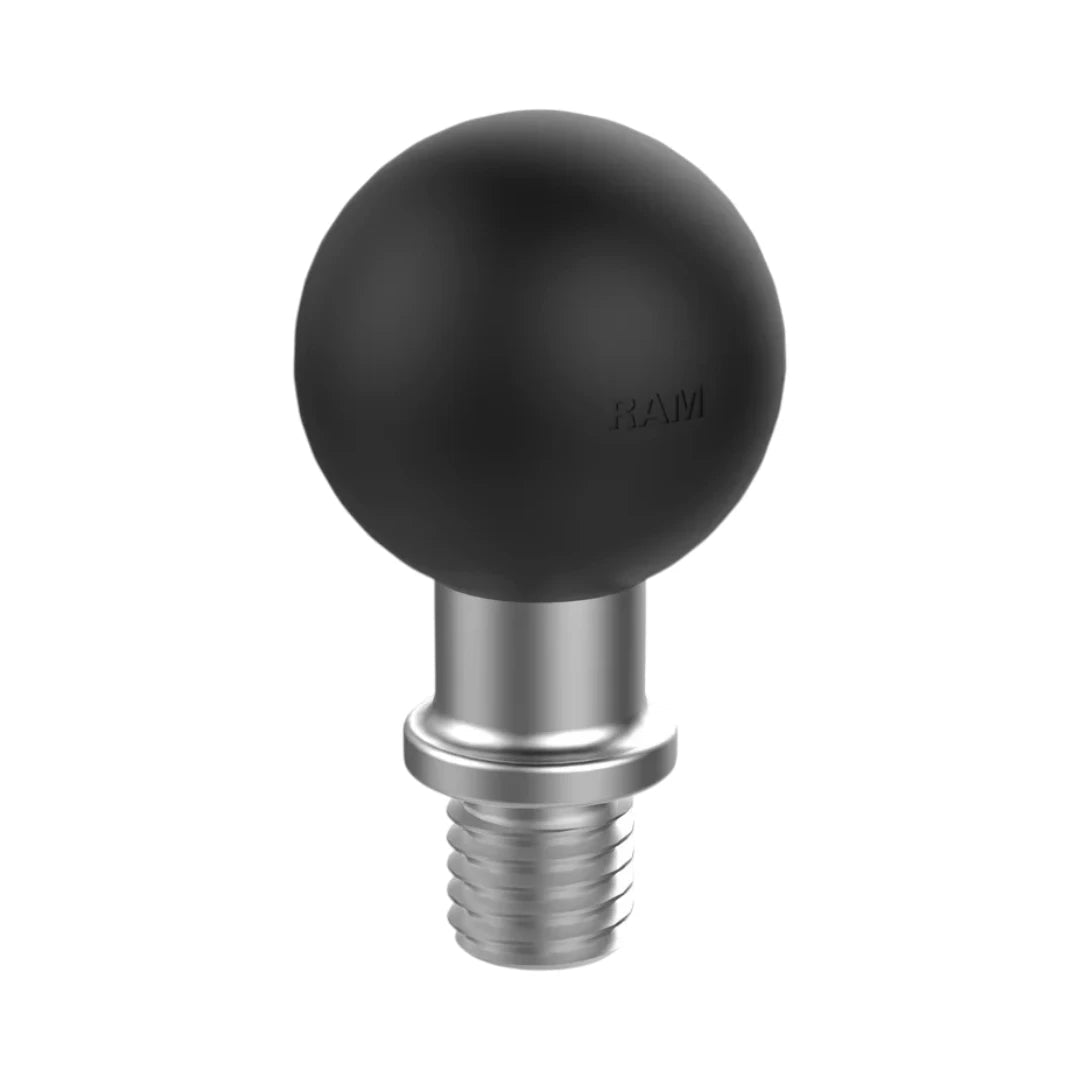

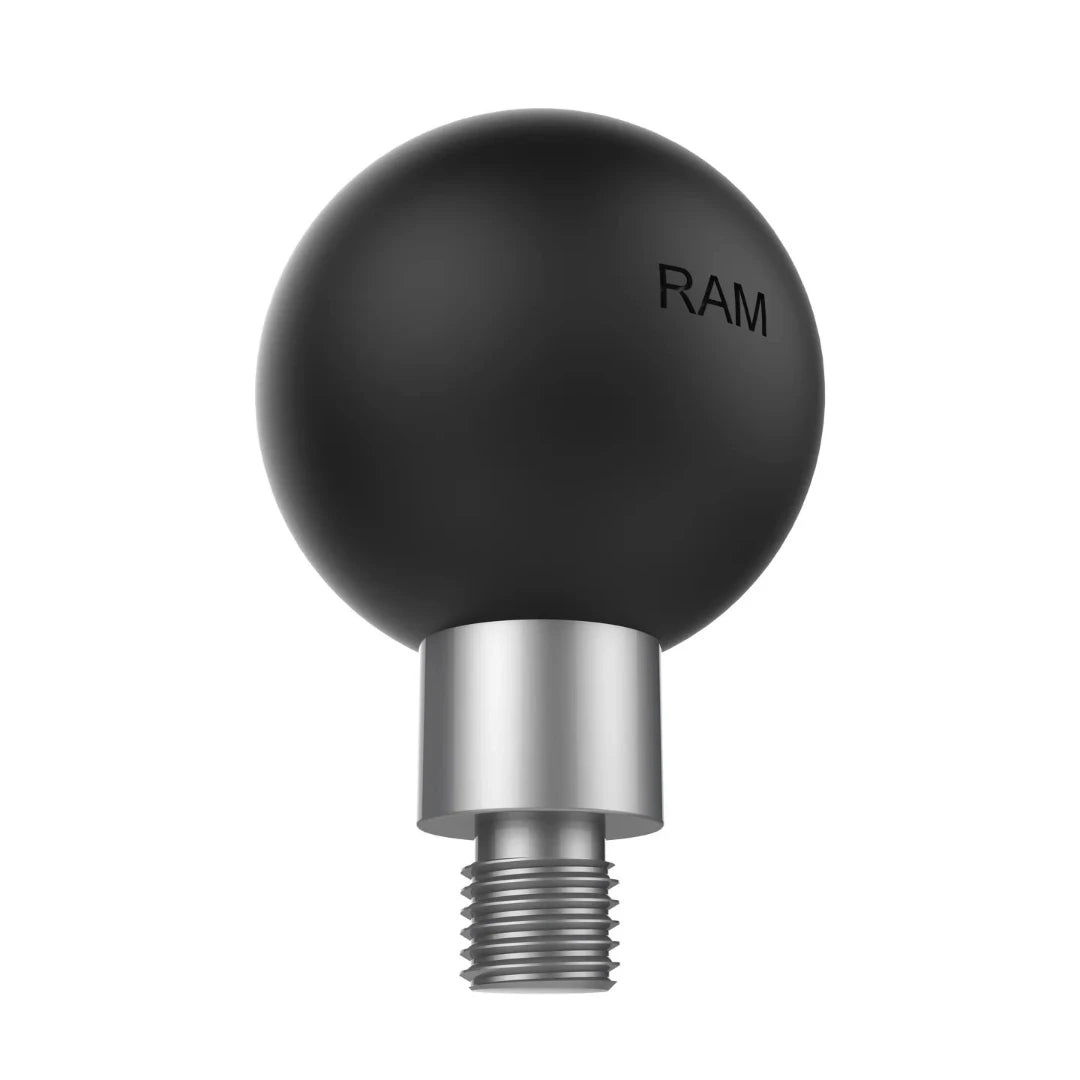

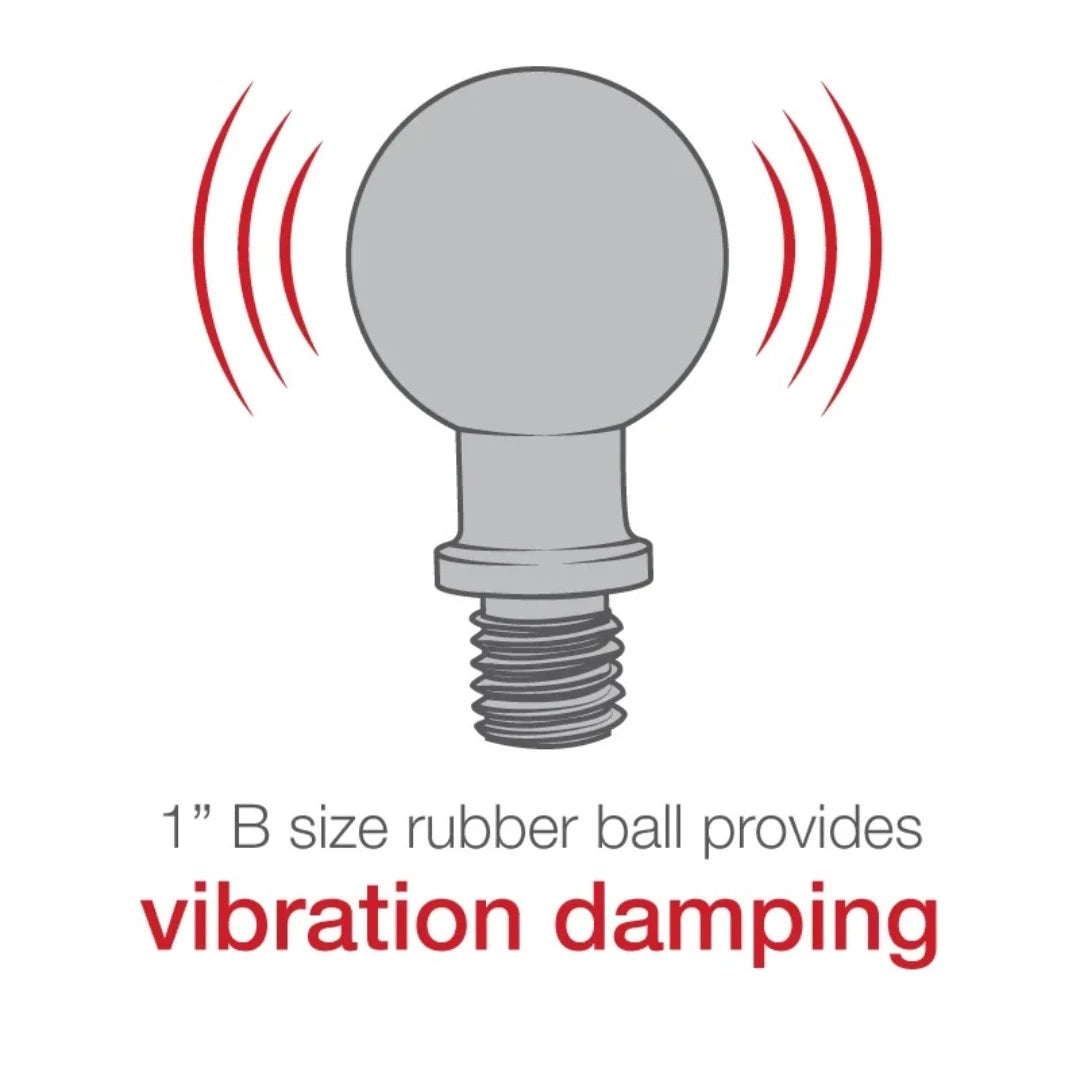

This product listing brings together three available configurations: M10 × 1.25 thread with a B Size ball, M10 × 1.5 thread with a B Size ball, and M10 × 1.25 thread with a C Size ball. The B Size ball measures 1 inch (25.4 mm) in diameter and is suitable for compatible B Size RAM double socket arms. The larger C Size ball measures 1.5 inches (38.1 mm) and requires a compatible C Size socket arm.

The M10 × 1.25 B Size version is designed for a threaded mounting hole with a 14.5 mm flange diameter and 10.15 mm thread length. The M10 × 1.5 B Size version uses a 14.3 mm flange diameter and 10.5 mm thread length. These dimensions differ, so check the mounting point carefully before selecting a variant.

Depending on the chosen configuration, the adapter can form part of a compatible motorcycle phone or GPS mounting setup, or another mounting application that uses the matching RAM ball-and-socket system. The adapter is a mounting base only; the socket arm, device holder and other components needed to complete a mount are separate unless explicitly included in your purchase.

Compatibility

This adapter must match both the female thread in the mounting point and the ball size required by the rest of the RAM mounting system. M10 × 1.25 and M10 × 1.5 are different thread pitches and are not interchangeable. B Size and C Size balls also require their corresponding socket-arm sizes.

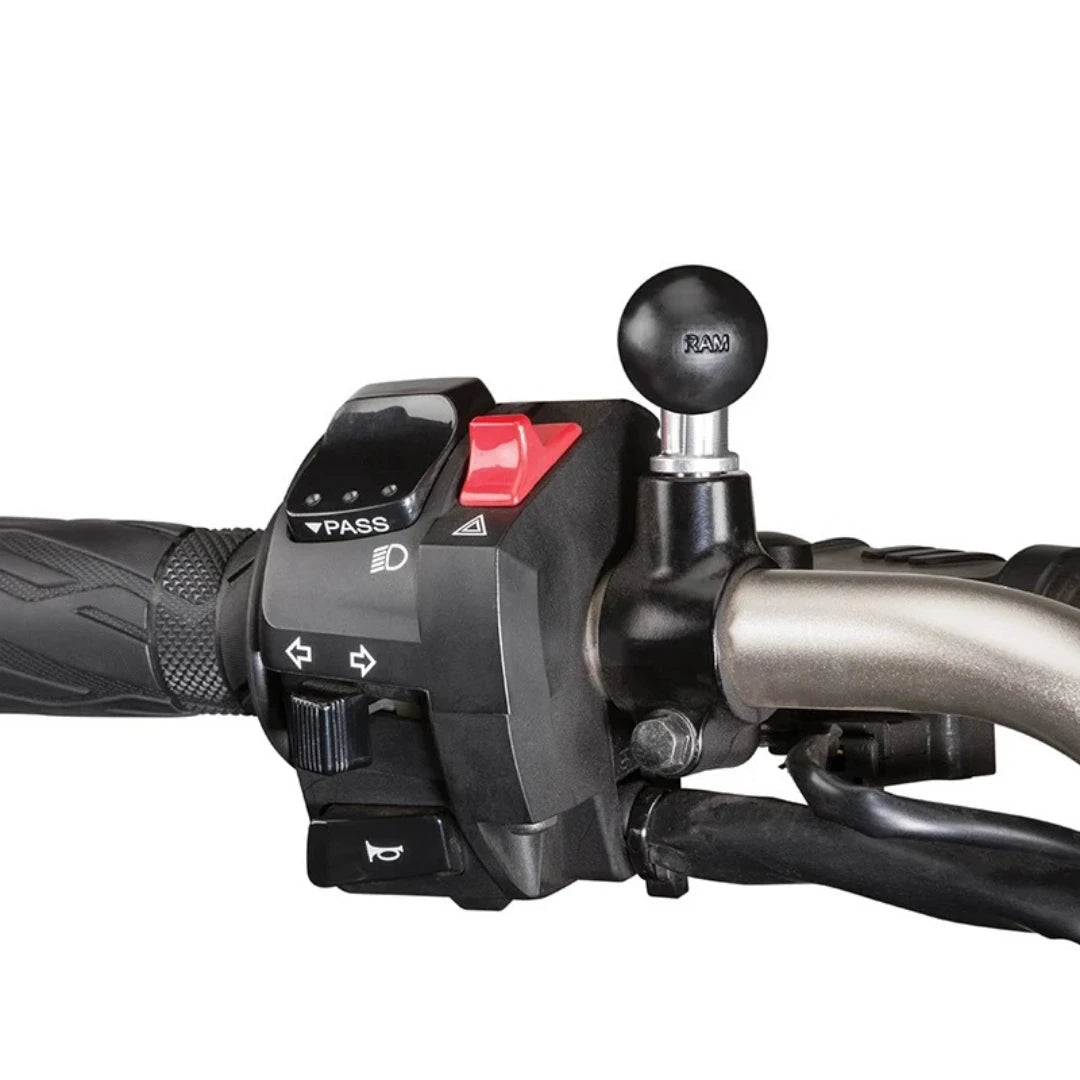

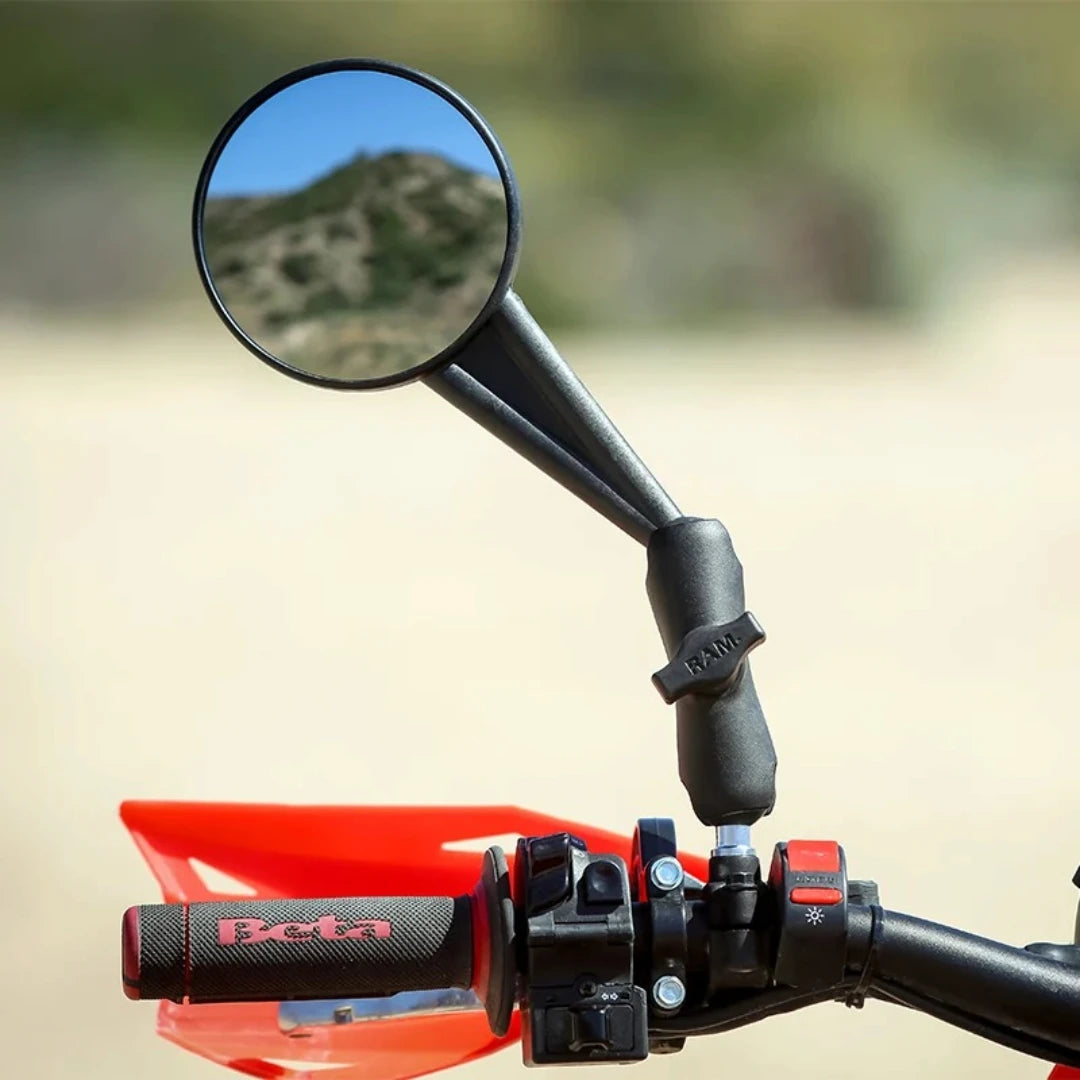

For motorcycle mirror mounting, verify the thread pitch, thread length, flange dimensions and whether the mounting point uses a standard or reverse thread. Motorcycle compatibility cannot be guaranteed from thread diameter alone.

Recommended Use

• Building a compatible RAM motorcycle phone or GPS mount.
• Connecting a suitable threaded mounting point to a RAM ball-and-socket system.
• Replacing a compatible threaded ball adapter in an existing RAM setup.
• Mounting applications that use the correct M10 thread and matching B or C Size socket components.

Installation and Maintenance

• Confirm the thread pitch and mounting-hole dimensions before installation.
• Check that the adapter seats correctly without forcing or cross-threading it.
• Use the matching B Size or C Size socket arm for the selected rubber ball.
• Tighten the threaded connection according to the equipment manufacturer's instructions.
• Check that the complete mounting assembly is secure before attaching a device.
• Inspect the thread, ball surface and socket arm periodically for looseness or wear.
• Follow RAM Mounts guidance for the selected ball size and intended load.

Safety Information

• Do not force an M10 × 1.25 thread into an M10 × 1.5 mounting hole, or the reverse.
• Do not combine a B Size ball with a C Size socket arm.
• Respect the manufacturer's stated load limits for the selected ball size and application.
• Check the mounting point and assembled mount before every ride if used on a motorcycle.
• Ensure the adapter and any mounted device do not interfere with steering, controls, mirrors or rider visibility.
